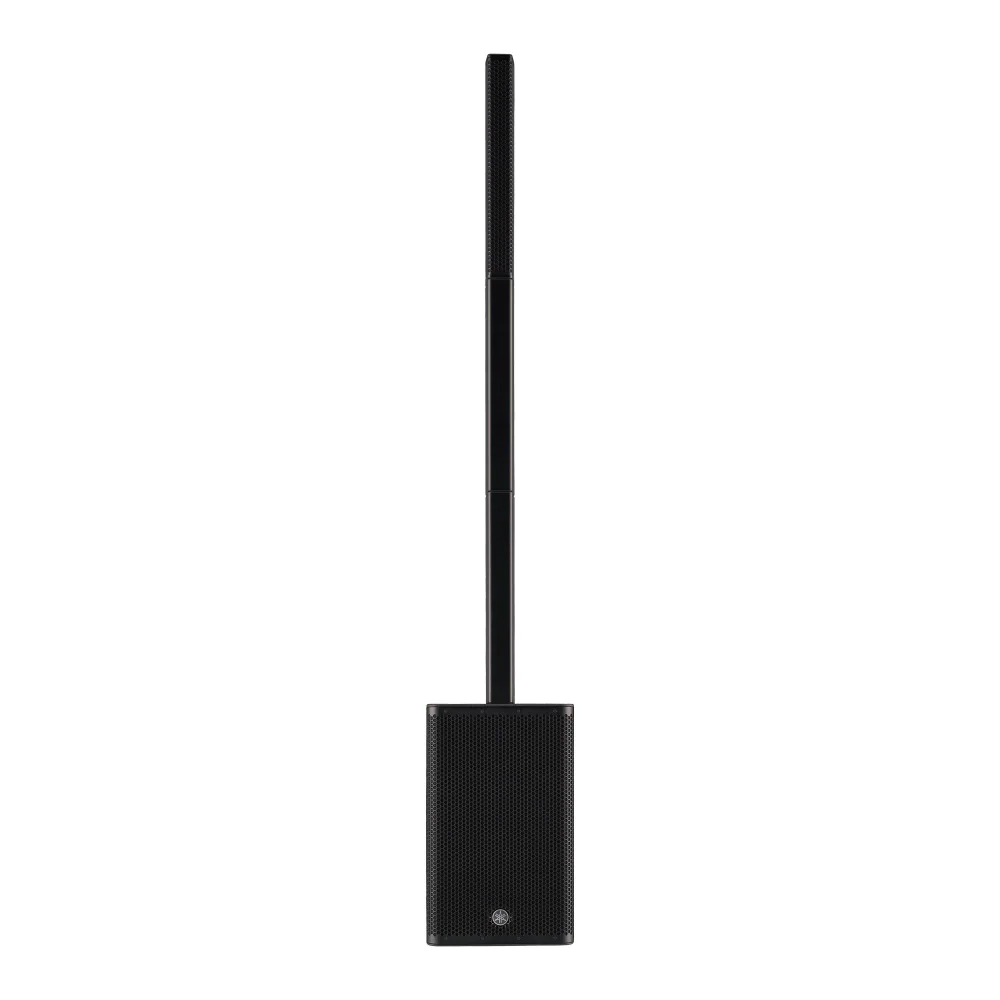

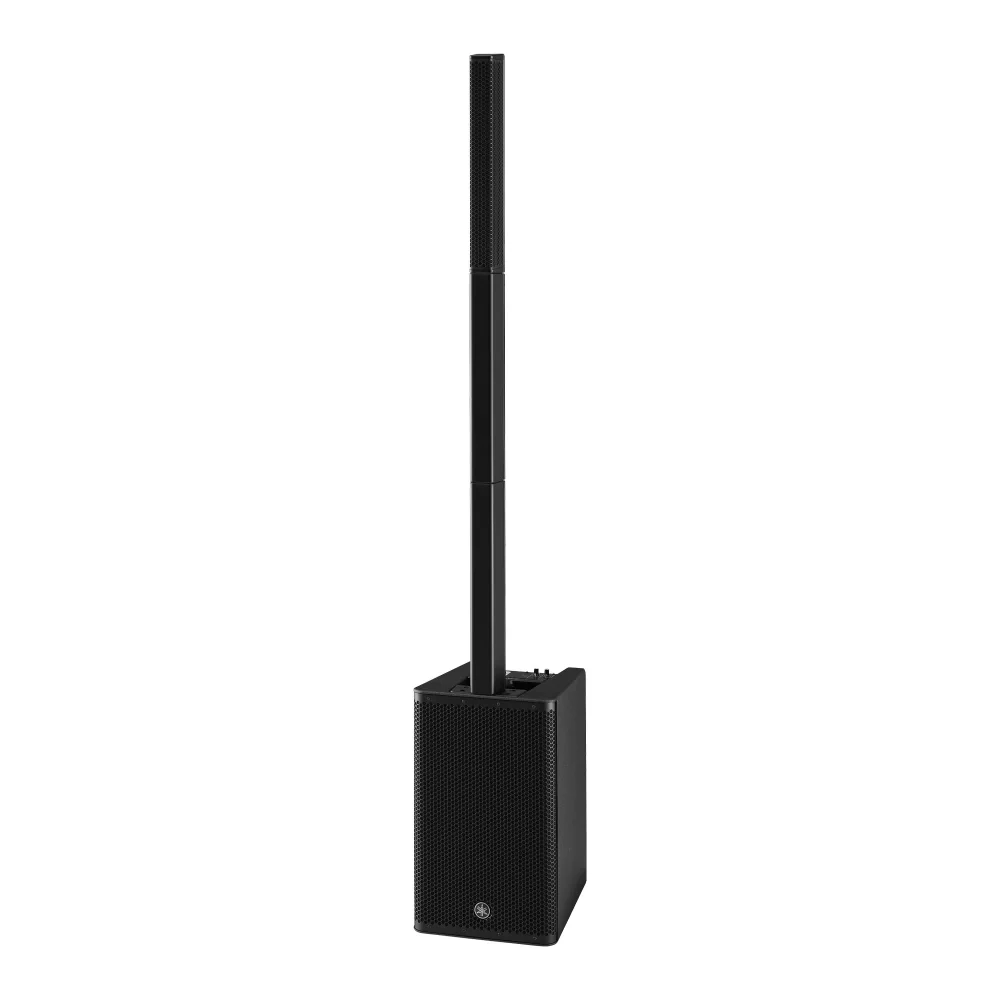

Yamaha DXL 1K Powered Column Speaker

Despite its lightweight and compact body construction, the DXL1K features a powerful 1100W amplifier driving a high-frequency array speaker system with 10 x 1.5" drivers and a large 12" subwoofer, resulting in premium sound pressure levels of up to 125 dB SPL. The DXL1K has excellent characteristics, 170° horizontal dispersion and 30° vertical dispersion, providing clear, high-quality sound over a wide range. J-Curve Slim Line Array The high-frequency speaker array is comprised of 10 small-diameter 1.5-inch speakers. By adopting a J-curve array configuration, the high-frequency unit achieves vertical coverage of 30 ° across a span of 170 °. With such a long, 10-driver array design the DXL1K can deliver clear, high quality sound consistently over longer distances, projecting uniform, high-quality sound from the front to the rear of the audience. Class-leading 12-inch “compact” subwoofer The subwoofer features a 12-inch speaker unit which is hardly “compact,” and actually the largest in its class. Despite housing a 12-inch speaker unit that is the largest in its class, the DXL1K boasts the smallest cabinet on the market for a subwoofer of this size and power. By incorporating Yamaha’s own Twisted Flare Port™ technology to reduce port wind noise that can occur with compact bass-reflex subwoofers, the low-end output is maximized, producing very deep, powerful, distortion-free bass. 1100W amplifier Also at the top of its class for output power, the 1100W Class-D amplifier module is capable of delivering an impressive 125 dB SPL from the deceptively compact speaker cabinet. And just as importantly, we’ve leveraged Yamaha’s decades-long experience as a manufacturer of professional PA products, and innovator of related technologies to ensure that with great power comes great stability, and that the DXL1K maintains the same accurate, superior-quality sound even at high output. High-grade polyurea coating The lightweight ABS cabinet of subwoofer features a high-grade polyurea coating to prevent wear and tear during transport. It is light enough to make the system extremely portable, but also rugged and scratch-resistant enough to withstand harsh performance environments.

Features

• 1100W power output
• Biggest in the class 12-inch subwoofer for low frequency
• 1.5-inch x10 slim line array speaker for high frequency
• Easy-to-use 2-Channel Mixer
• Link in/out for expanding system
• Dedicated cover included
• Superior Utility and Portability
• Optional dolly (DL-SP1K) for more portability

Specifications

General specifications

• Speaker type - Powered subwoofer with a line array speaker
• Frequency range (-10dB) - Frequency range (-10dB) 37 Hz - 20 kHz
• Coverage area - Coverage area H170ﾟ x V30ﾟ
• Crossover - Crossover 240 Hz
• Maximum output level (1m; on axis) - Maximum output level (1m; on axis) 125 dB SPL

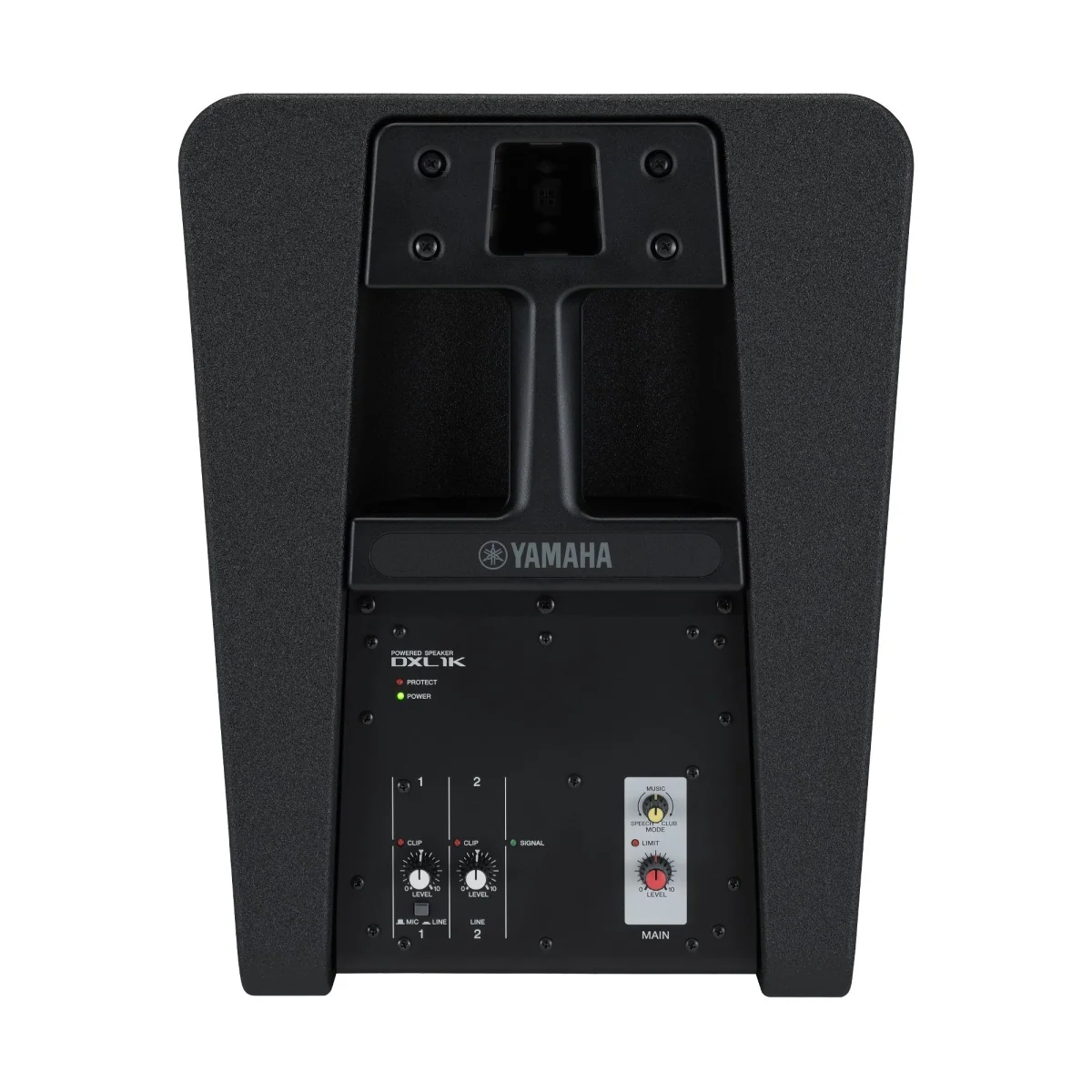

Components LF - Powered subwoofer: 12” (30 cm) Cone HF - HF Line array speaker: 1.5” (3.8 cm) Cone x 10 Amplifier class - Class-D Power rating/Dynamic - 1100 W Power consumption - 25 W (Idle), 91 W (1/8 power) Power requirements - Depending on area of purchase: 100 V 50 Hz/60 Hz, 110-120 V 60 Hz, 220 V-240 V 50 Hz/60 Hz Processors - MODE (SPEECH/MUSIC/CLUB) I/O connectors - INPUT1: Combo x1 (mic/line), INPUT2: Combo x1 (line), LINK IN: XLR x1, LINK OUT: XLR x1 Handle - Top of powered subwoofer x1 Dimensions (W x H x D) - System: 334 x 2,000 x 418 mm (maximum), Line array speaker: 67 x 582 x 86 mm, Powered subwoofer: 334 x 550 x 418 mm, Spacer: 67 x 555 x 86 mm (each) Weight - System: 23.0 kg (maximum), Line array speaker: 1.8 kg, Powered subwoofer: 20.0 kg, Spacer: 0.6 kg (each) Accessories - Power cord x1, Cover x1 Options - Yamaha DL-SP1K (Dedicated dolly)
