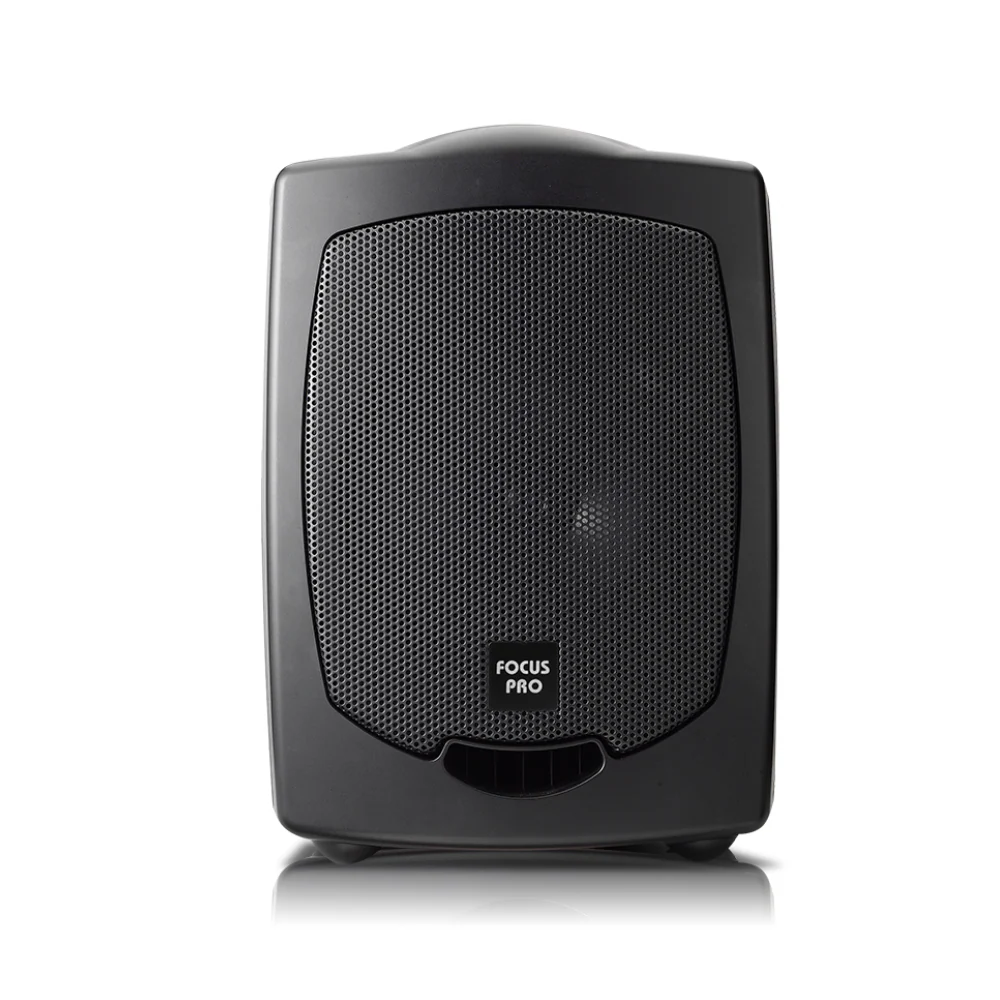

Chiayo Focus PA System - 566MHz
The FOCUS PRO is a versatile, high-performance amplifier designed to meet the demands of any occasion. Whether you're hosting a conference, leading a lecture, teaching a class, or organizing an indoor event, it delivers powerful, crystal-clear sound for audiences of 300 to 1000 people.
Equipped with multiple receiver modules, it offers seamless connectivity with a range of audio devices, ensuring maximum flexibility. Its built-in high-efficiency lithium battery provides up to 20 hours of continuous operation—ideal for all-day use without interruption.
Lightweight and portable, the FOCUS PRO is easy to transport and set up, giving you professional-grade sound and effortless operation wherever you need it.
Features
- 70W Class-D power amplifier.
- 6 ½” full range speaker.
- 2-band equalizer (BASS / TREBLE) for all audio inputs.
- VOICE PRIORITY automatically ducks music when a microphone is used (switchable).

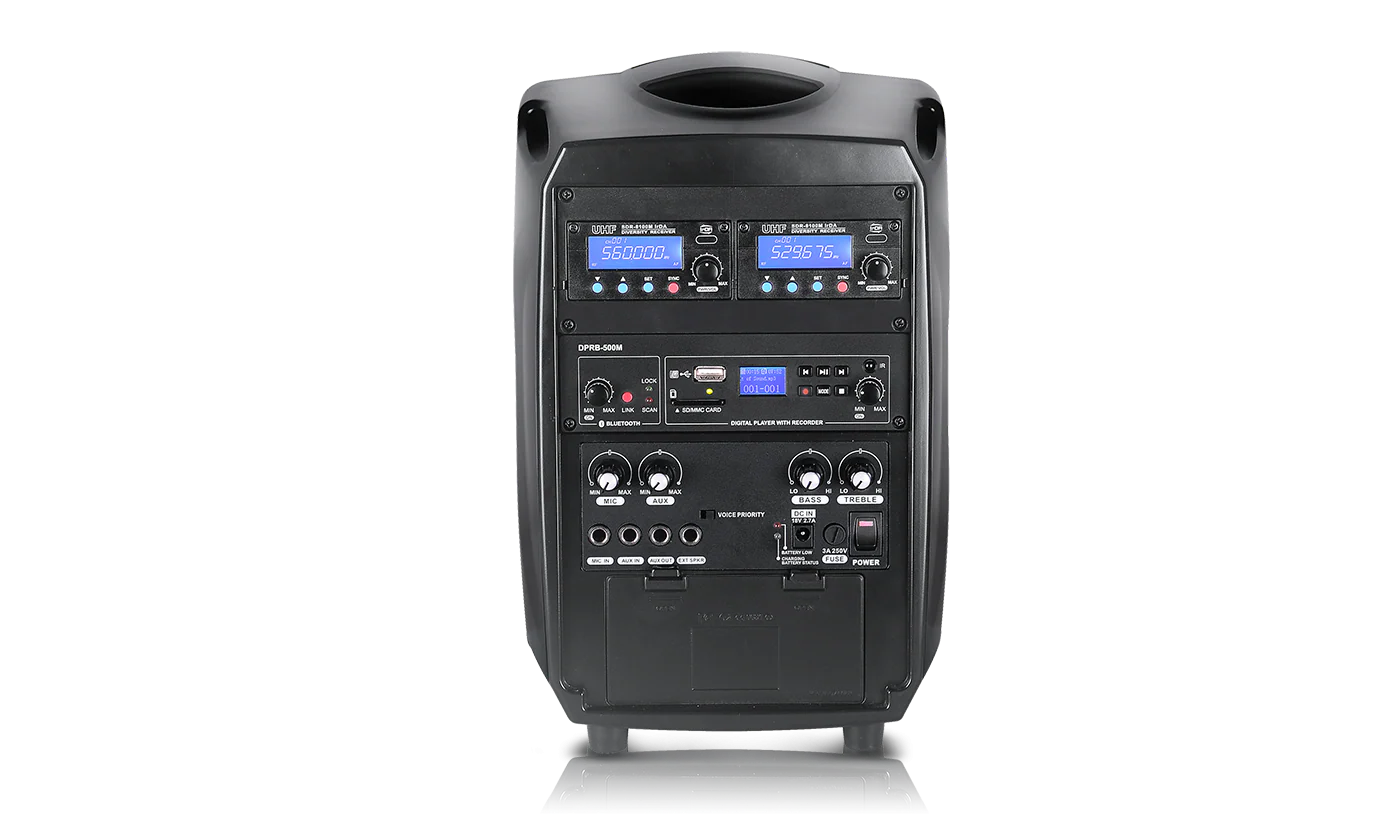

- Unique optional combination
- SLOT 1: Receiver module (SDR-8200/8100M IrDA/DWR-5410M).
- SLOT-2: Repeater (RP-5100M) or receiver (SDR-8200/8100M IrDA/DWR-5410M) module.
- SLOT 3: Bluetooth-MP3 module (DPRB-500M).
- 6.3mm jack connector for microphone input.
- AUX IN (6.3mm jack).
- LINE OUT (6.3mm jack) for external audio recording.
- SPEAKER OUT (6.3mm jack) for an external 4-8Ω passive speaker.
- Up to 20 hours operating time per charge with lithium battery.
- Battery compartment design for simple battery replacement.
Specifications
- Max power output 70W, 4Ω load (class-D)
- Speaker system 6 ½" full range
- Frequency response 50Hz-20KHz±3dB
- T.H.D. < 0.5%
- Audio input MIC in (Ø6.3mm),
- AUX in (Ø6.3mm)
- Audio output AUX out (Ø6.3mm)
- External speaker 4~8Ω (Ø6.3mm)
- Power supply 100-240V AC, 19V DC / 3.42A
- Battery Lithium (14.8V / 5.2Ah) x1
- Operating time 9-11 hours in music, 11-20 hours in speech
- Charging time about 8 hours
- Dimensions (mm) 220 x 215 x 313
- Weight (kg) 3.8
