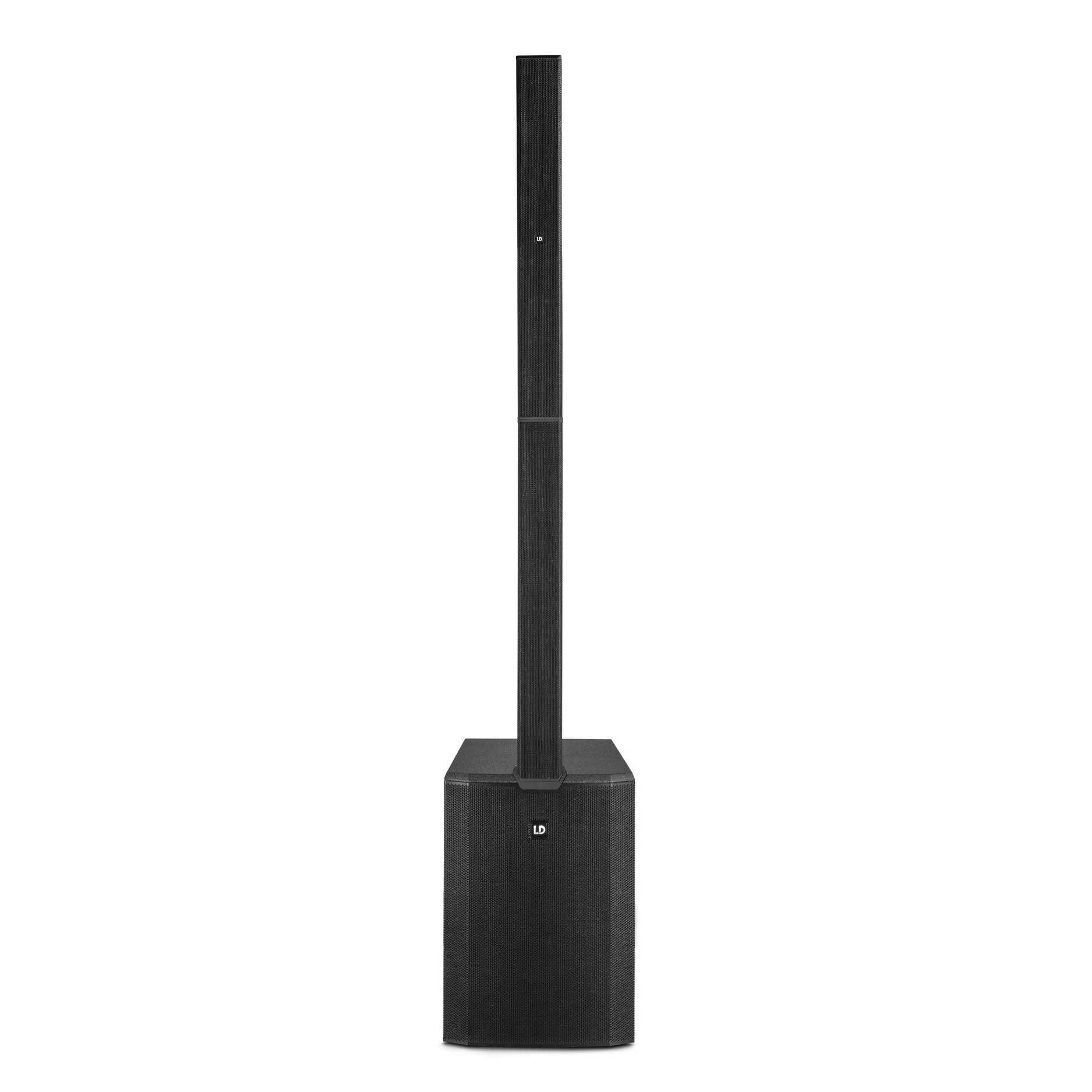

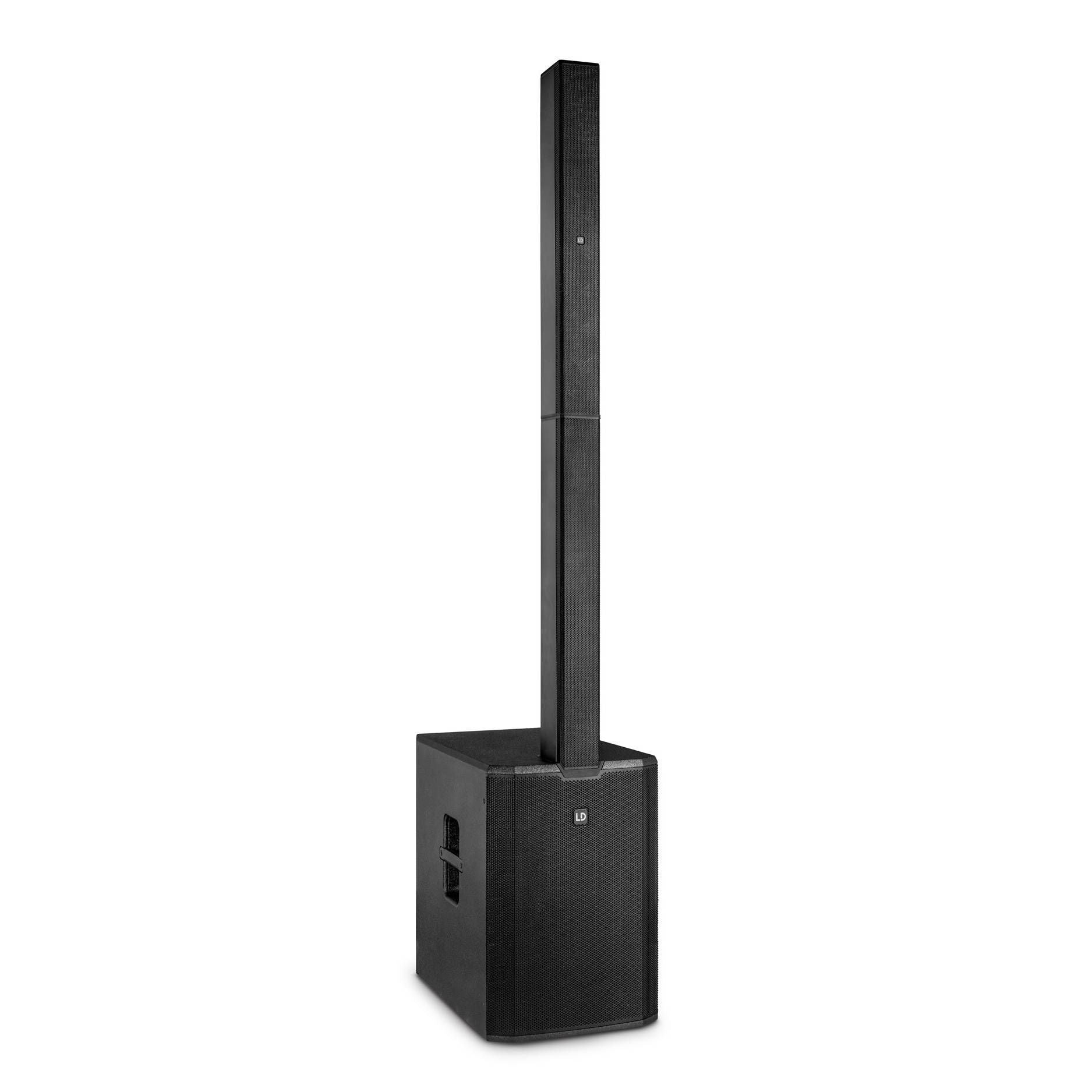

LD Systems MAUI 44 G2 Column PA System with Subwoofer

Column systems have literally revolutionized numerous application areas for bands and DJs. Never has it been easier to provide a consistent sound solution from a simple, inconspicuous PA system - even in large spaces. The MAUI® 44 G2 is now the practical, powerful solution for the professional segment.

---

Features

• Professional column PA system with 1500 W RMS and 132 dB max. SPL
• Cardioid column for controlled low- and mid-range frequency dispersion and cardioid subwoofer application (with additional subwoofer)
• TrueWireless™ stereo technology for wireless stereo pairing of two column systems
• aptX™ coding and advanced audio coding (AAC) for high-resolution Bluetooth® streaming
• BEM-optimized high-frequency waveguide for uniform dispersion pattern, phase plug for coherent mid-range wavefront and flow-optimised bass-reflex ports
• DynX® DSP technology for distortion-free sound at maximum volume
• Automatic setup detection
• Fast and simple assembly without stands or cables
• Rugged subwoofer housing made out of polyurea-coated birch plywood and lightweight, powder-coated aluminium column

---

Specifications

• Product type: PA Complete Systems
• Type: Powered
• Color: Black
• Max. SPL (peak): 132 dB
• Frequency response: 37 - 20000 Hz
• Dispersion (H x V): 120 x 25
• Total Height: 2256 mm
• Weight: 47.6 kg
• Features: Bluetooth Audio Streaming , DSP-based Signal Processing , Excellent Sound Dispersion , Mono/ Stereo Application

Subwoofer

• Woofer dimensions: 15 "
• Woofer size: 381 mm
• Woofer magnet: Neodymium
• Woofer brand: Custom-made
• Woofer voice coil: 4 "
• Woofer voice coil (mm): 101 mm
• Cabinet construction: Bass Reflex
• Housing material: 15 mm Birch Plywood , 18 mm Birch Plywood
• Cabinet surface: Polyurea
• Dimensions Subwoofer (W x H x D): 434 x 634 x 637 mm
• Subwoofer weight: 36.4 kg

Mid/Hi System

• Midrange size: 12 x 3,5 "
• Midrange size: 12 x 89 mm
• Midrange magnet: Neodymium
• Midrange brand: Custom-made
• Midrange voice coil: 1 "
• Midrange voice coil: 25.4 mm
• Tweeter dimensions: 4 x 0.5 "
• Tweeter dimensions (mm): 12.7 mm
• Tweeter magnet: Neodymium
• Tweeter brand: Custom-made
• Tweeter voice coil: 1 "
• Tweeter voice coil (mm): 25.4 mm
• Wave Guide: CD Waveguide
• Loudspeaker inputs: 1
• Speaker input connections: Custom-made multipin
• Cabinet construction mid/high: Closed
• Mid/Hi system cabinet material: Aluminum
• Mid/Hi system cabinet surface: HD coated aluminum , multi layer mesh (cloth)
• Mid/Hi system width: 103 mm
• Mid/Hi system height: 1621 mm
• Mid/Hi system depth: 135 mm
• Mid/Hi system weight: 11.2 kg

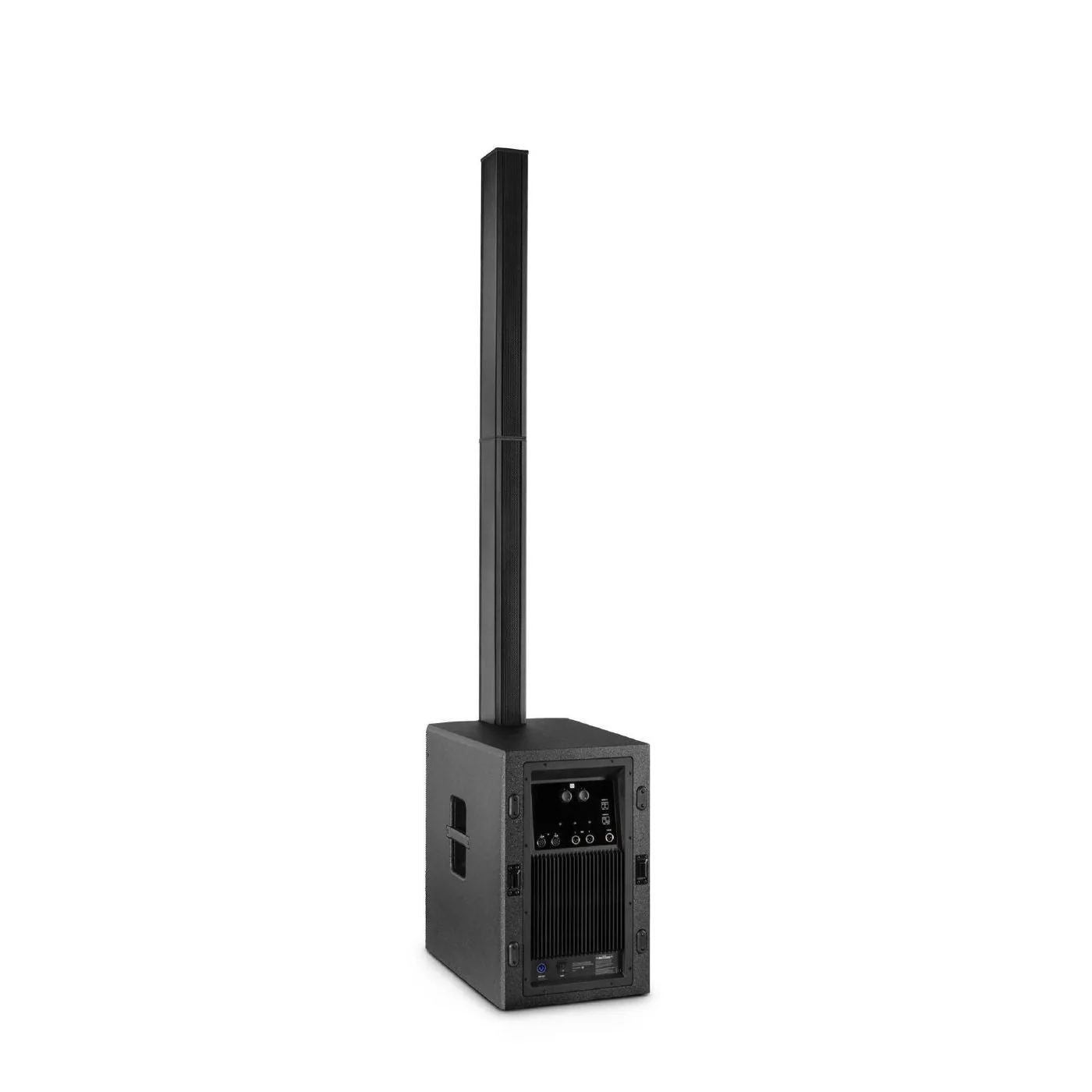

Amplifier module (integrated in subwoofer)

• Amplifier: Class D
• System output (RMS): 1500 W
• Protection circuits: DC protection , Multiband limiter , short circuit , thermal protection
• Cooling: Convection
• Controls: Bluetooth HOLD TO LINK button , Bluetooth STEREO LINK button , Cardioid On/Off , Main level , Power On/Off , Sub level
• Indicators: Bluetooth , Bluetooth STEREO LINK , Cardioid On/Off , Limit , Power , Protect (protection circuit engaged) , Signal , slave mode , Subwoofer Mode
• Mains connector: Neutrik PowerCon
• Operating voltage: 100 V AC - 120 V AC, 50 - 60 Hz , 220 V AC - 240 V AC, 50-60 Hz
• Ambient temperature (operating): 0 - 40 °C
• Relative Humidity: < 80% (non-condensing)
• Line Inputs: 2
• Line Input Connectors: XLR female
• Line Outputs: 2
• Line Output Connectors: XLR male
• Number of speaker outputs: 1
• Loudspeaker Output Connectors: Custom-made multipin
• Bluetooth Standard: A2DP
• Bluetooth Audio Decoder: AAC , aptX , SBC

DSP Characteristics

• Bit depth AD/DA converter: 24 bit
• Sampling frequency: 48 kHz
• Signal-to-noise ratio: 106 dB

---
