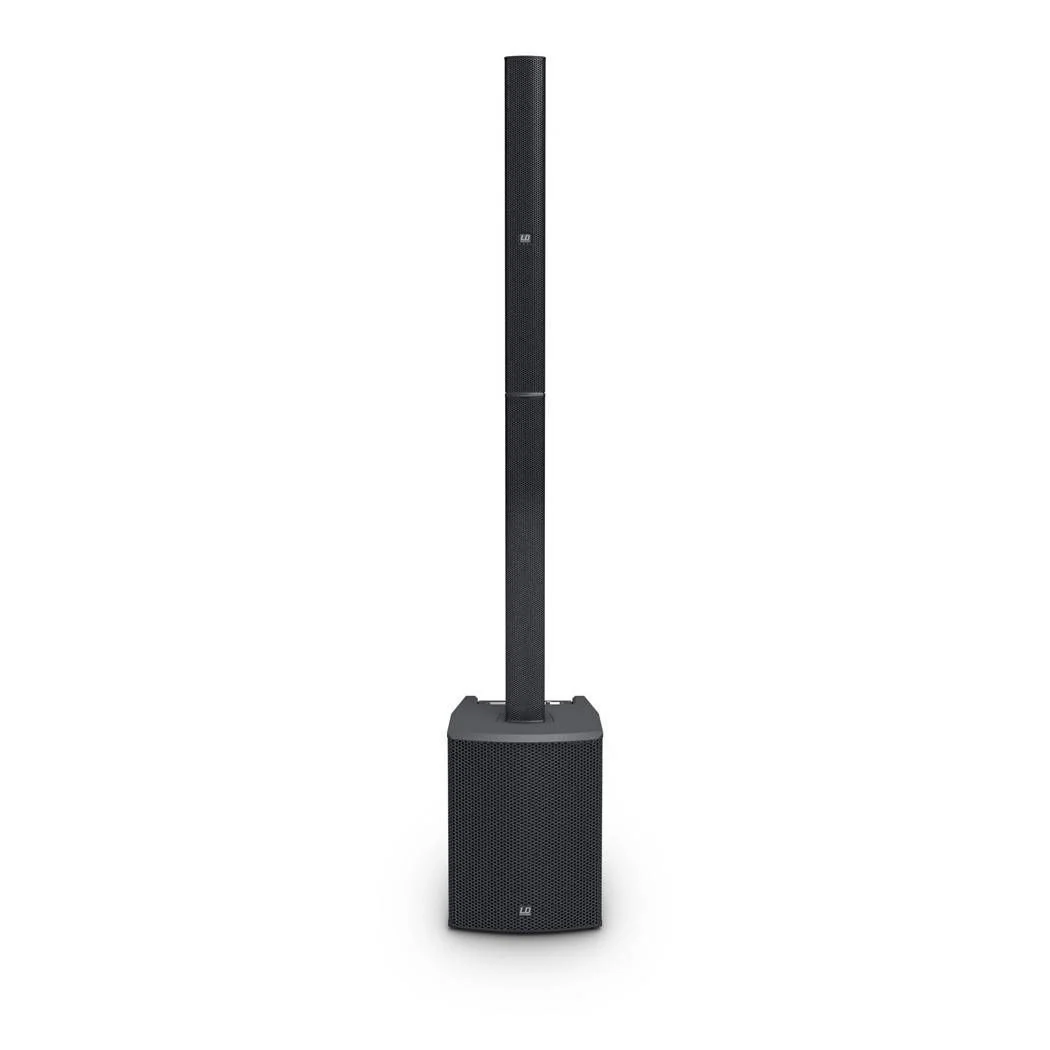

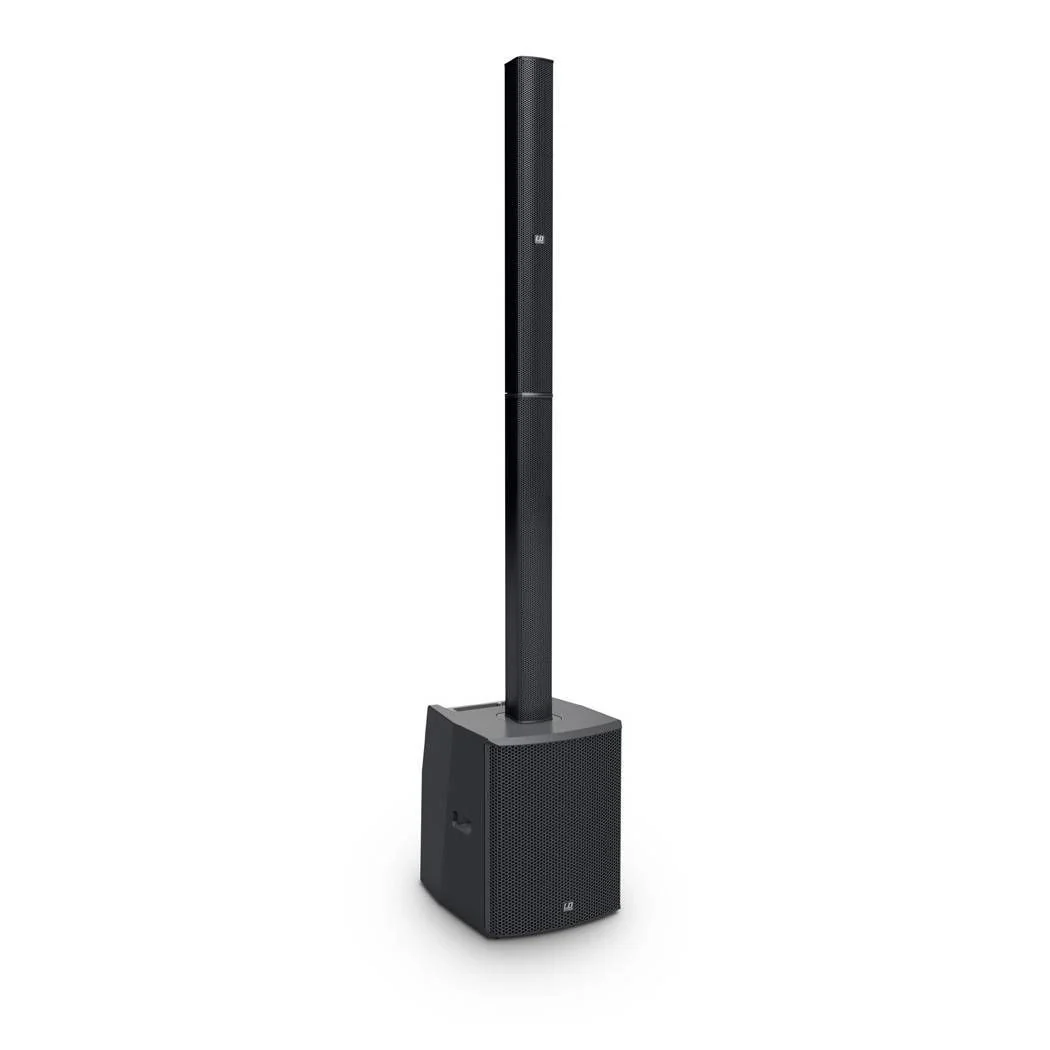

LD Systems Maui 28 Gen2 Column Array with Mixer
The two column elements in the padded shoulder bag, the subwoofer in one hand and the guitar or keyboard in the other - and off you go! Setting up the complete system, which doubles as PA and monitor system is just as easy thanks to the special multi-pin cable plugs. The compact and elegant MAUI 28 G2 offers an unbeatable sound quality and wide-ranging sound distribution. It was developed with year-long experience in the design of the column systems as a user-friendly solution for medium sized gigs and fixed installations.
Features
- All-in-one column speaker for PA and monitor applications
- 2,000 watts peak Class-D system power offer high performance with a low weight
- Powerful bass reproduction with 2 x 8" woofers
- Balanced mids thanks to the 16 x 3" full-range speakers
- Precise and silky highs with 2 x 1" high-frequency drivers
- Increased range and wider coverage through the array arrangement
- Homogeneous dispersion pattern through a BEM-optimised tweeter wave guide
- Distortion-free sound even at the highest volume thanks to LD Systems DynX® DSP technology
- Full control through a 4-channel mixer including Bluetooth® Stereo Audio Streaming
- Two-piece column for compact transport
- Secure plug-and-play connection thanks to the wireless multi-pin mechanism
- A wide range of application options through dismountable columns
- Easy operation with presets for mono or stereo configuration
- Extensive and smart accessories for installation and transport
Specifications
- Weight: 30.9 kg
- Product type: PA Complete Systems
- Type: active
- Color: Black
- Max. SPL (peak): 126 dB
- Frequency response: 45 - 20000 Hz
- Dispersion (H x V): 120° x 20
- Overall height: 2059 mm
Woofer Characteristics
- Low/mid driver dimensions: 2 x 8 "
- Woofer size: 2 x 203 mm
- Woofer magnet: Ferrite
- Woofer brand: Custom-made
- Woofer voice coil: 2 "
- Woofer voice coil (mm): 50.8 mm
- Cabinet construction: Bass Reflex
- Cabinet material: 15 mm Plywood
- Cabinet surface: texture paint
- Subwoofer width: 370 mm
- Subwoofer height: 484 mm
- Subwoofer depth: 480 mm
- Subwoofer weight: 19.7 kg
Mid/Hi System
- Midrange size: 16 x 3 "
- Midrange size: 16 x 76.2 mm
- Midrange magnet: Ferrite
- Midrange brand: Custom-made
- Midrange voice coil: 1 "
- Midrange voice coil: 25.4 mm
- Horn: Waveguide
- Tweeter dimensions: 2 x 1 "
- Tweeter dimensions (mm): 25.4 mm
- Tweeter magnet: Neodymium
- Tweeter brand: Custom-made
- Tweeter voice coil: 1 "
- Tweeter voice coil (mm): 25.4 mm
- Loudspeaker inputs: 1
- Speaker input connections: Custom-made multipin
- Cabinet construction mid/high: Closed
- Mid/Hi system cabinet material: Aluminum
- Mid/Hi system cabinet surface: HD coating
- Mid/Hi system width: 96 mm
- Mid/Hi system height: 780 / 795 mm
- Mid/Hi system depth: 104 mm
- Mid/Hi system weight: 5.6 / 5.6 kg
Amplifier module (integrated in subwoofer)
- Amplifier: Class D
- Amplifier output system (RMS): 1000 W
- Amplifier output system (peak): 2000 W
- Protection circuits: DC protection , Multiband limiter , short circuit , thermal overload
- Cooling: Convection
- Operating Temperature: 0 - 40 °C
- Humidity Range: 10% to 80%, (non-condensing)
- Controls: Bluetooth switch , Hi-Z Level , Line level , Main level , Mono/stereo switch , MP3/Bluetooth Level , Power , Sub level
- Indicators: Limit , mono , On , Protect (protection circuit engaged) , Setup , Signal , stereo
- Power connector: IEC power cable (included)
- Operating voltage: 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching)
- Power consumption Off / On / Max.: 0/11/600 W
- Line inputs: 2 x stereo
- Line input connectors: RCA , XLR/6.3 mm jack
- Line outputs: 2 (1x System Out, 1x Sub Out)
- Line output connectors: XLR
- Mic inputs: 1
- Mic inputs: XLR/6.3 mm jack
- MP3 inputs: 1
- MP3 input connectors: 3.5 mm jack
- Hi-Z inputs: 1
- Hi-Z input connectors: 6.3 mm jack
- Loudspeaker outputs: 1
- Speaker output connections: Custom-made multipin
DSP characteristics
- Bit depth AD/DA converter: 24 bit
- Internal sampling frequency: 48 kHz
- Signal/noise ratio: 100 dB
Watch: LD Systems MAUI 28 G2 meets Chasing Kurt
