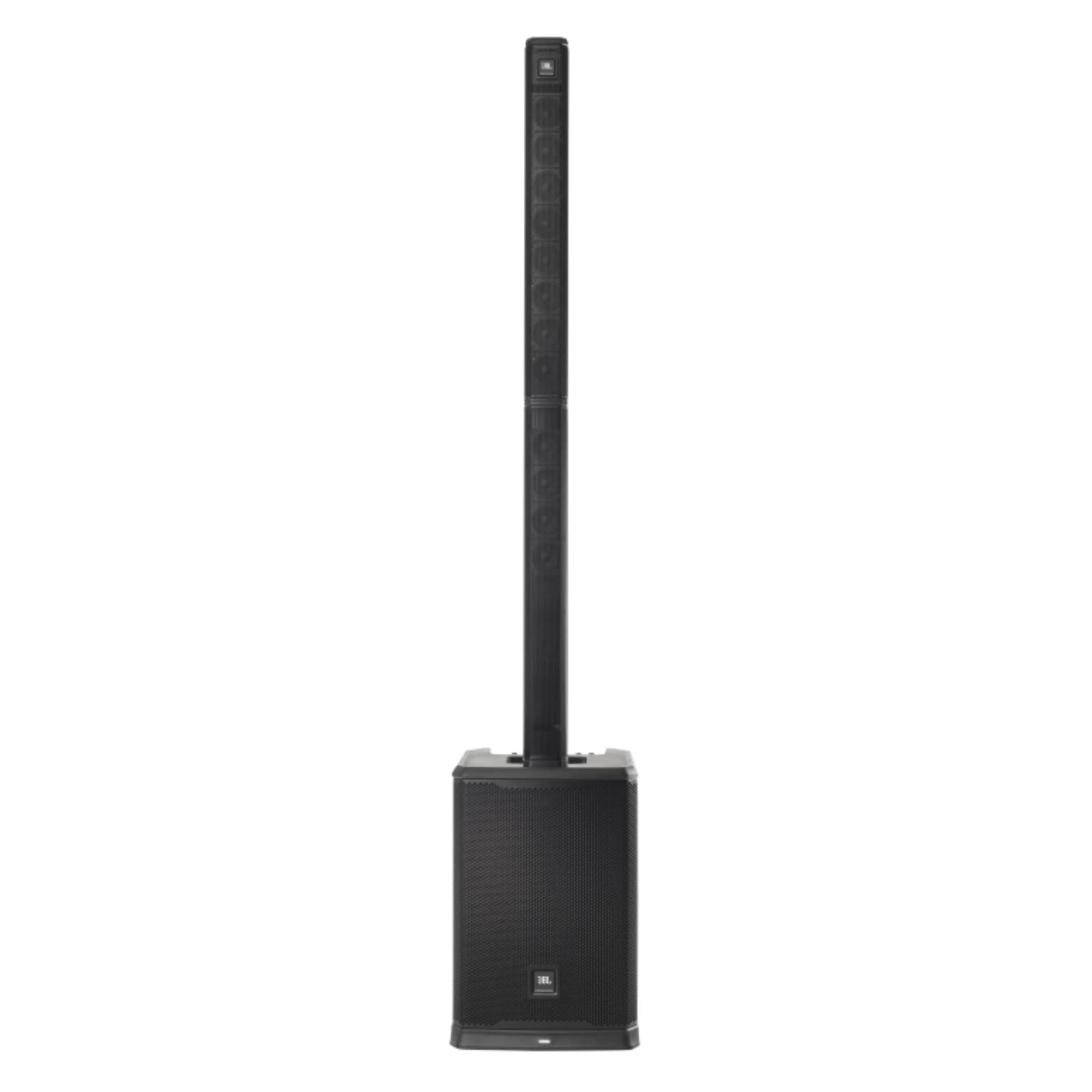

JBL PRX ONE Powered Column PA with Mixer and DSP
The JBL PRX ONE is a powerful, all-in-one column PA that combines compact design with professional-grade performance. Its acoustically optimized column array and custom 12-tweeter configuration deliver consistent, full-range sound from front to back, while the integrated 12” bass-reflex woofer and 2000W amplifier ensure astonishing clarity and punch at up to 130dB SPL. Equipped with a 7-channel digital mixer, advanced DSP, and seamless connectivity options including Bluetooth and the JBL Pro Connect app, the PRX ONE offers unmatched versatility and precision, making it ideal for a wide range of live sound applications.
Features
- Vertical array of twelve 2.5" drivers delivers consistent, even HF response from the front of the room to the back
- JBL A.I.M. (Array Inumbration Mechanics) geometrically optimized array-shading technology ensures consistent front-to-back coverage
- Sophisticated crossover management and HF/LF coupling allow for more natural low-end response and smooth, uniform response across the entire frequency range
- 2,000-watt (peak), fully bridged Class D amplifier with power factor correction and high-linearity inductors
- Integrated 7-channel digital mixer with four high-efficiency, low-noise microphone preamps
- Powerful Lexicon effects engine with delay, reverb chorus, echo and sub synth, with presets for easy setup
- Triple Tier DSP control offers multi-level user experiences based on knowledge level
- dbx DriveRack Inside technology features AFS (Automatic Feedback Suppression), 8-band master EQ, system limiter, plus gates and compressors on each channel for unrivaled dynamic control, and one-touch ducking by Soundcraft ensures speech is always heard
- Simple, intuitive full-color LCD screen provides easy access to all PRX ONE functions
- 8 user presets instantly optimize system sound
- 2 USB 2.0 ports charge devices and power AKG wireless systems (with optional JBL adapter cable)
- Bluetooth 5.0 connectivity allows remote system control of up to 10 units using the JBL Pro Connect app for full control
- Computer-modeled ComfortGrip handle simplifies transport
Specifications
System Type
Powered Column PA Speaker
Drivers
Woofer: 1 x 12”
Tweeter: 12 x 2.5”
Audio
Max SPL: 130 dB
Frequency Range (-10 dB): 35 Hz - 20 kHz
Frequency Range (-3 dB): 40 Hz - 20 kHz
Horizontal Dispersion: 130°
Vertical Dispersion: 30°
Power Rating: 2000W Peak / 1000W RMS
Crossover Frequency: 260 Hz
Input Impedance
Balanced Combo: 4 kΩ
Balanced Hi-Z Jack: 2 MΩ
3.5 mm Single Ended 2-Channel: 10 kΩ
I/O
XLR Combo Jacks: 4
¼" Hi-Z Inputs: 2
⅛" / Bluetooth Summed Input: 1
XLR Pass Through: 1
Power
Power Output: 300W
AC Voltage: 100 - 230V
Frequency: 50 - 60 Hz
Dimensions
Height: 850 mm
Width: 482 mm
Depth: 647 mm
Weight
31.75 kg
