Yamaha DXL1K Powered Loudspeaker with Dolly

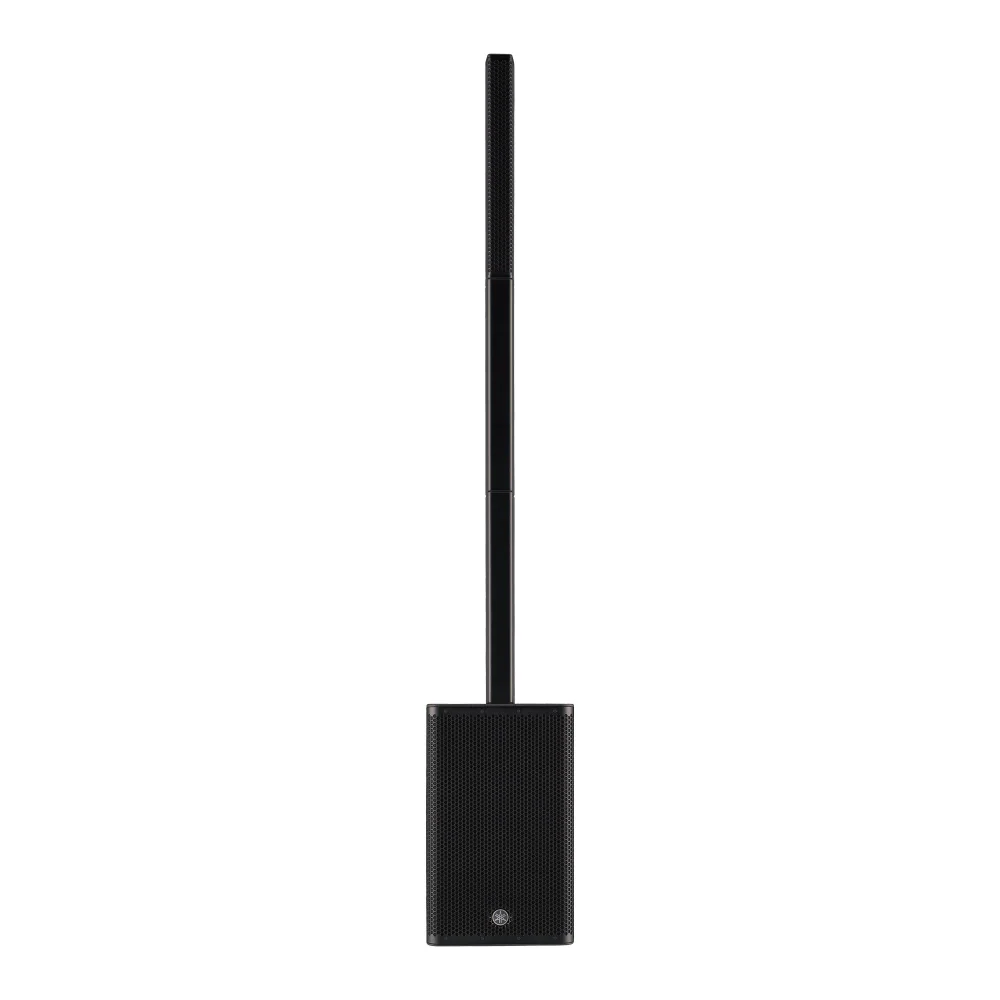

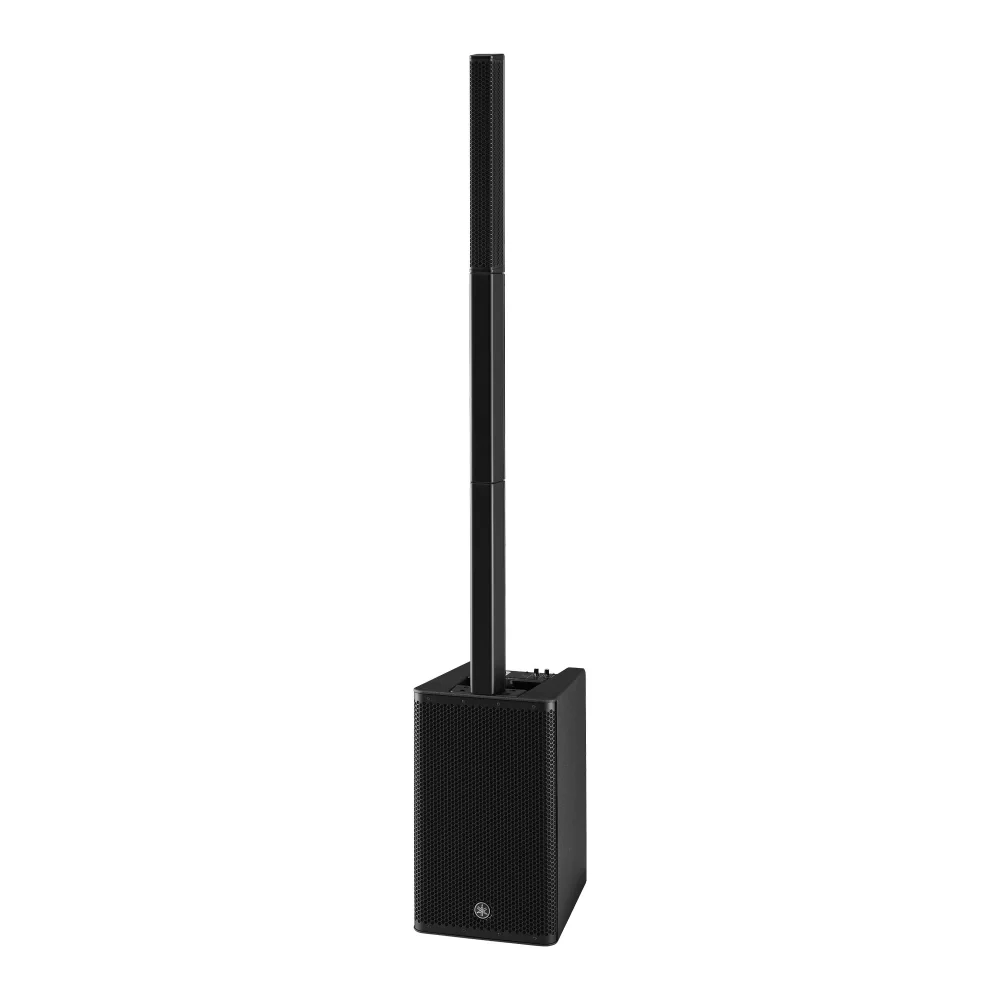

Combining easy setup by simply attaching the line array speaker to the top of the subwoofer enclosure and system expandability with the link function, when used in combination with a compact mixer or the fully compatible STAGEPAS 1K mkII, it creates a simple, compact, high-quality PA system.
Features
Compact yet Powerful
Despite its lightweight and compact cabinet construction, the DXL1K features a high-output 1100 W amplifier powering a high-frequency array speaker system with 10 x 1.5-inch drivers and a large 12-inch subwoofer, producing best-in-class sound pressure levels of up to 125 dB SPL.
Offering an impressive 170° horizontal and 30° vertical coverage, the DXL1K delivers clear, high-quality sound consistently throughout a wide area.
J-Curve Slim Line Array
The high-frequency speaker array is comprised of 10 small-diameter 1.5-inch speakers. By adopting a J-curve array configuration, the high-frequency unit achieves vertical coverage of 30 ° across a span of 170 °. With such a long, 10-driver array design the DXL1K can deliver clear, high quality sound consistently over longer distances, projecting uniform, high-quality sound from the front to the rear of the audience.
Class-leading 12-inch “compact” subwoofer
The subwoofer features a 12-inch speaker unit which is hardly “compact,” and actually the largest in its class. Despite housing a 12-inch speaker unit that is the largest in its class, the DXL1K boasts the smallest cabinet on the market for a subwoofer of this size and power.
By incorporating Yamaha’s own Twisted Flare Port™ technology to reduce port wind noise that can occur with compact bass-reflex subwoofers, the low-end output is maximized, producing very deep, powerful, distortion-free bass.
1100W Amplifier
Also at the top of its class for output power, the 1100W Class-D amplifier module is capable of delivering an impressive 125 dB SPL from the deceptively compact speaker cabinet. And just as importantly, we’ve leveraged Yamaha’s decades-long experience as a manufacturer of professional PA products, and innovator of related technologies to ensure that with great power comes great stability, and that the DXL1K maintains the same accurate, superior-quality sound even at high output.
High-Grade Polyurea Coating
The lightweight ABS cabinet of subwoofer features a high-grade polyurea coating to prevent wear and tear during transport. It is light enough to make the system extremely portable, but also rugged and scratch-resistant enough to withstand harsh performance environments.

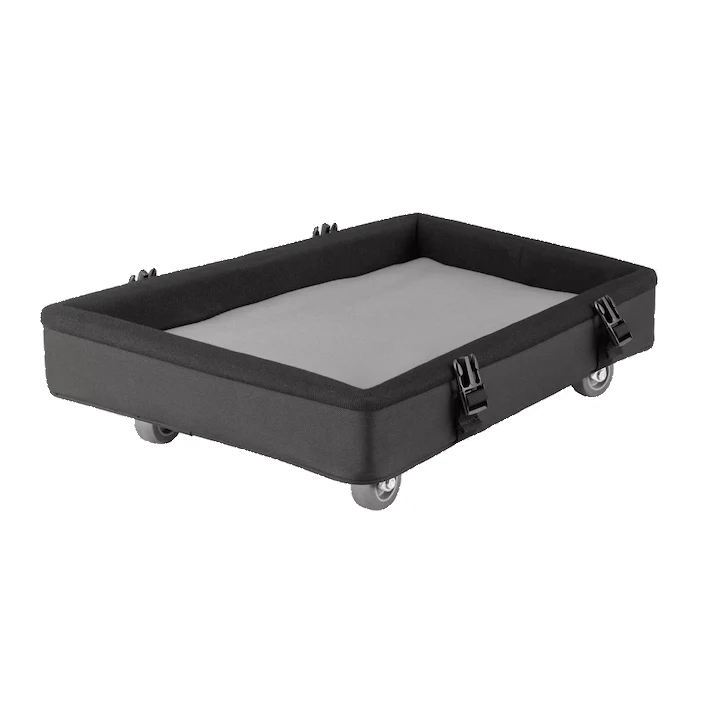

Dolly (DL-SP1K)
An optional dedicated dolly allows for more convenient transportation — particularly useful for performers transporting additional gear and instruments. Featuring a simple, sturdy mechanism that locks down the speaker cover the lightweight dolly enables smooth, reliable transportation.
Specifications

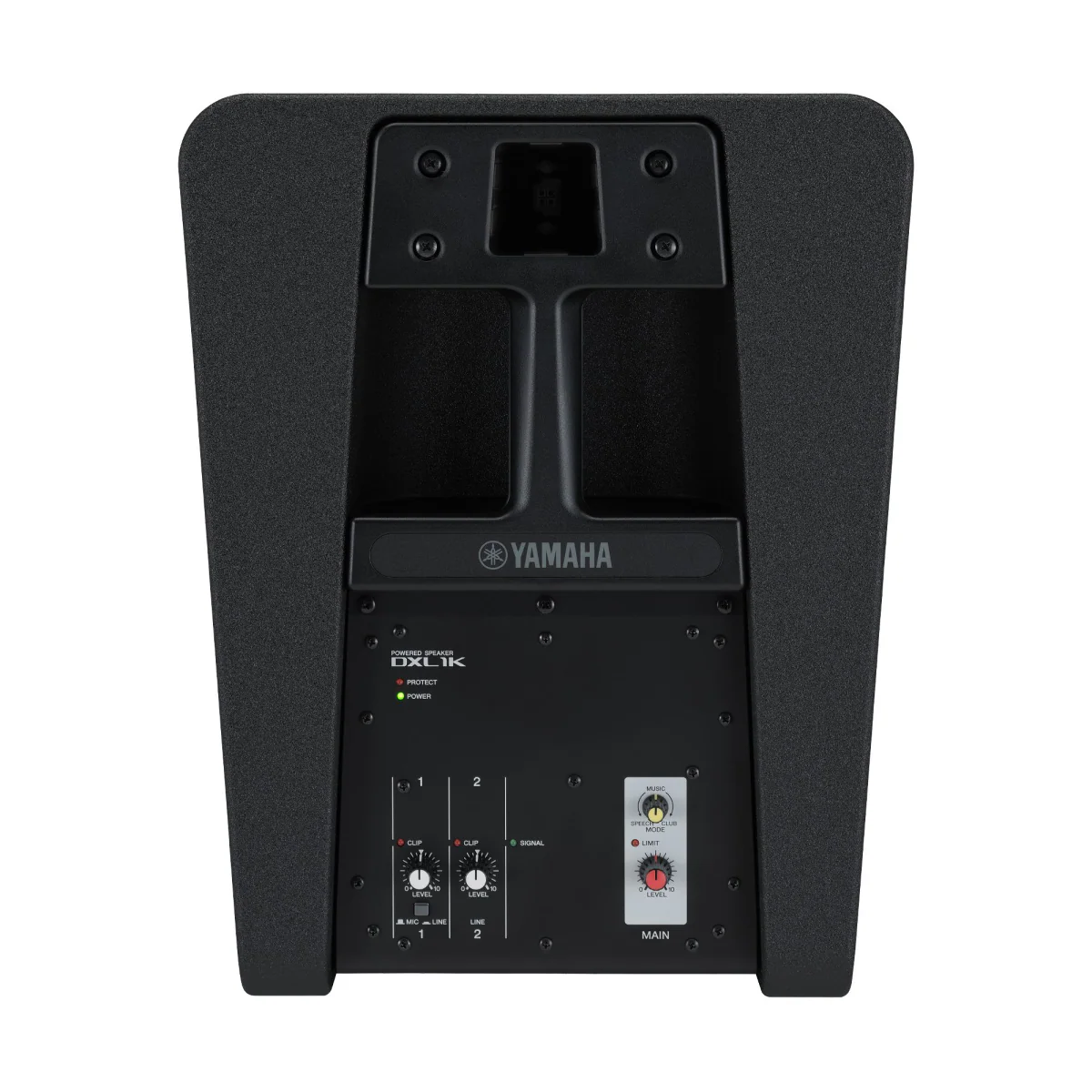

Speaker Type: Powered subwoofer with a line array speaker Frequency range (-10dB): 37 Hz - 20 kHz Coverage Area: H170ﾟ x V30ﾟ Crossover: 240 Hz Maximum output level (1m; on axis): 125 dB SPL Components: LF: Powered subwoofer: 12” (30 cm) Cone HF: Line array speaker: 1.5” (3.8 cm) Cone x 10 Amplifier class: Amplifier class Class-D Power rating: Dynamic 1100 W Power consumption: 25 W (Idle), 91 W (1/8 power) Power requirements: Depending on area of purchase: 100 V 50 Hz/60 Hz, 110-120 V 60 Hz, 220 V-240 V 50 Hz/60 Hz Processors: MODE (SPEECH/MUSIC/CLUB) I/O connectors: INPUT1: Combo x1 (mic/line), INPUT2: Combo x1 (line), LINK IN: XLR x1, LINK OUT: XLR x1 Handle: Top of powered subwoofer x1 Dimensions System: 334 x 2,000 x 418 mm (maximum) Line array speaker: 67 x 582 x 86 mm Powered subwoofer: 334 x 550 x 418 mm Spacer: 67 x 555 x 86 mm (each) Product Weight System: 23.0 kg (maximum) Line array speaker: 1.8 kg Powered subwoofer: 20.0 kg Spacer: 0.6 kg (each) Accessories Power cord x1 Cover x1 DL-SP1K Dolly$1,215.58
