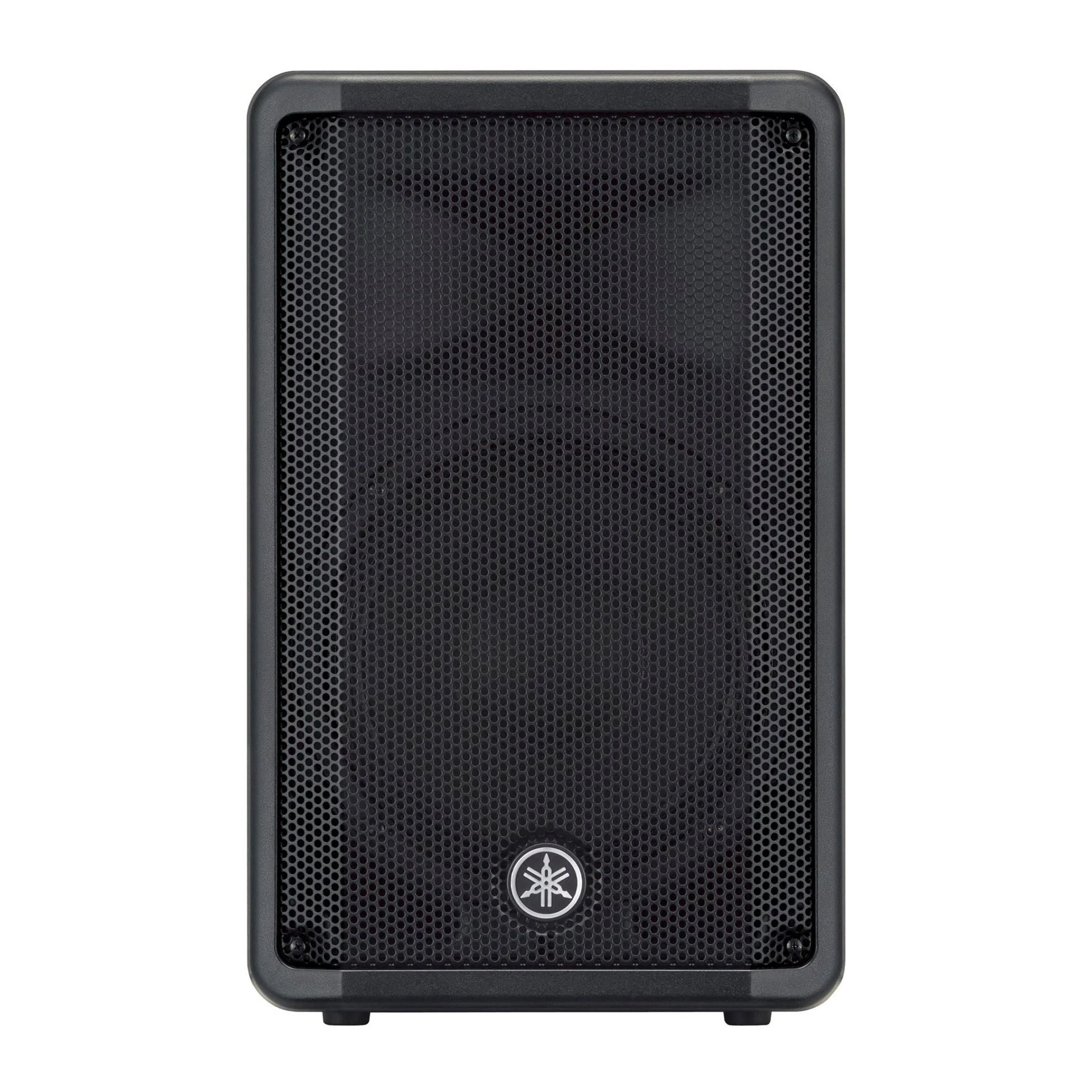

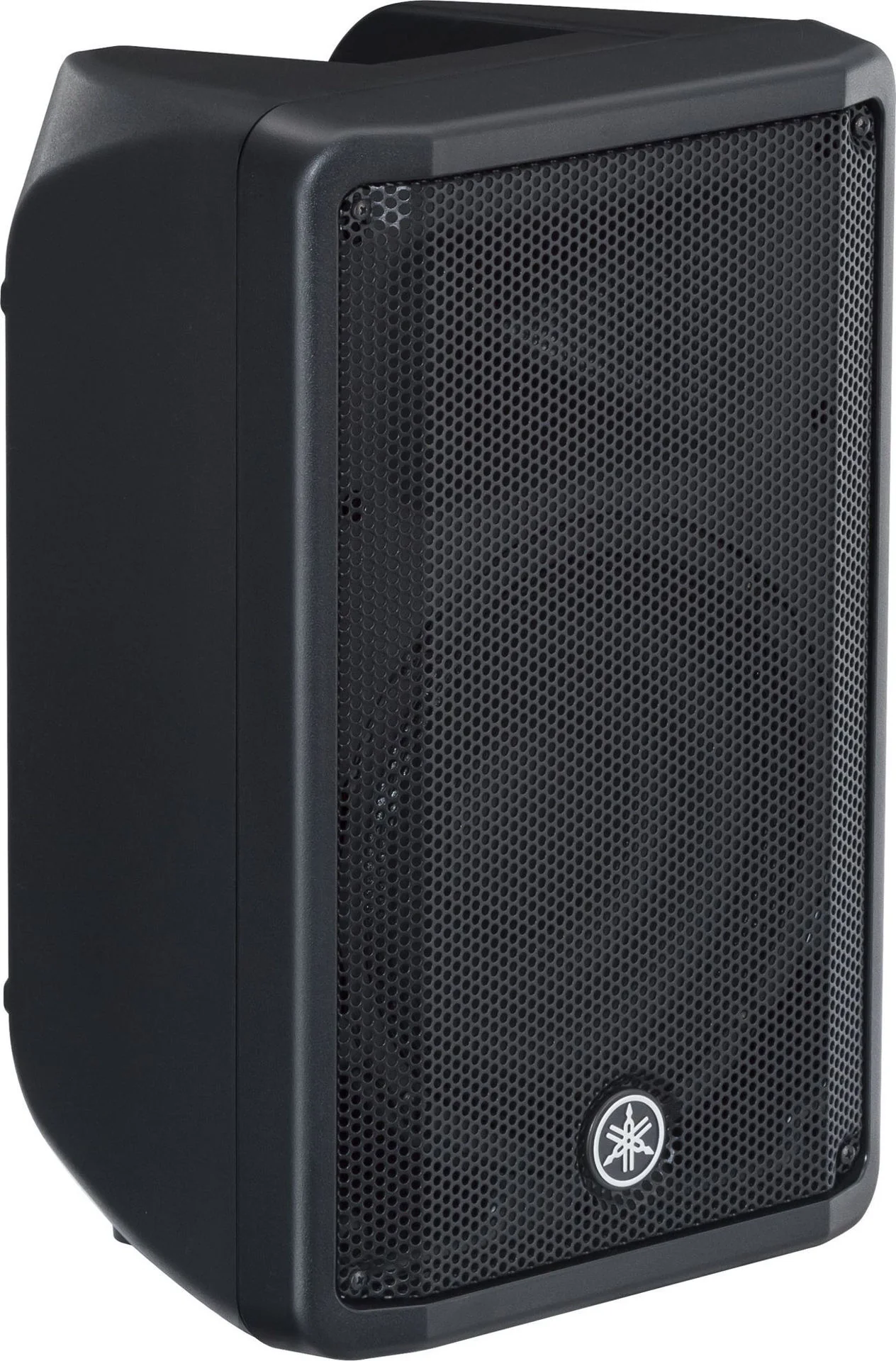

Yamaha CBR10 10 inch Unpowered PA Speaker (700 Watt)
Watch: Check out the Yamaha CBR Series Unpowered PA Speakers in action
CBR Series speakers come equipped with carefully selected and customized transducers that feature a highly responsive woofer and a precise 2.5” compression driver (CBR15) or 2”compression driver (CBR10 and CBR12), ensuring consistent high-definition sound with minimal distortion even at high output levels.
Additionally, a newly designed wide-dispersion constant directivity horn minimizes the radiation pattern deterioration in oblique directions that more conventional horns are prone to, allowing sound to expand in a more rectangular pattern, evenly dispersing wide-frequency sound to the outer-most edges of the coverage area.
Have you ever blown your speakers by cranking up the output levels beyond your speakers capabilities? CBR Series speakers employ a protection function that limits excessive input to the HF unit. This valuable protection circuit affords you worry-free operation of your speakers when you need them most. Combined with a highly responsive LF unit, CBR Series speakers reliably deliver clear, precise sound at any output level.
CBR Series speakers feature a very compact, durable, and lightweight plastic cabinet equipped with newly designed, ergonomic handles that greatly minimize system transport and setup. In addition, all CBR models feature a sleek, steel front grille that seamlessly blends in with installation aesthetics while protecting the vital inner speaker components from environmental hazards.
Product Specifications
| Speaker type | 2-way Speaker Bass-reflex Type |
| Frequency range (-10dB) | 50 Hz - 20 kHz |
| Horizontal Coverage | 90 degrees |
| Vertical Coverage | 60 degrees |
| Low Frequency Driver | 10" Cone 2" Voice Coil (Ferrite Magnet) |
| High Frequency Driver | 1" Voice Coil Compression Driver (Ferrite Magnet) |
| Crossover | 2.8 kHz |
| Peak Power | 700W |
| Nominal impedance | 8Ω |
| SPL Sensitivity (1W; 1m on axis) | 94dB SPL |
| SPK Peak Calculated | 123 dB |
| I/O connectors | 1/4" Phone x 1 speakON NL4MP x 1 |
| Cabinet material | Plastic |
| Finish | Black |
| Handle | Top x 1 |
| Flying and mounting hardware | Bottom x 2 & Rear x 1 (Fit for M8 x 15mm Eyebolts) |
| Pole socket | Φ35 mm Bottom x 1 |
| Width | 308mm (12.1") |
| Height | 493mm (19.4") |
| Depth | 289mm (11.4") |
| Weight | 9.4 kg (20.7 lbs) |
| Cover | Not Included |
Original: $271.16
-65%$271.16
$94.91More Images
Yamaha CBR10 10 inch Unpowered PA Speaker (700 Watt)
Watch: Check out the Yamaha CBR Series Unpowered PA Speakers in action
CBR Series speakers come equipped with carefully selected and customized transducers that feature a highly responsive woofer and a precise 2.5” compression driver (CBR15) or 2”compression driver (CBR10 and CBR12), ensuring consistent high-definition sound with minimal distortion even at high output levels.
Additionally, a newly designed wide-dispersion constant directivity horn minimizes the radiation pattern deterioration in oblique directions that more conventional horns are prone to, allowing sound to expand in a more rectangular pattern, evenly dispersing wide-frequency sound to the outer-most edges of the coverage area.
Have you ever blown your speakers by cranking up the output levels beyond your speakers capabilities? CBR Series speakers employ a protection function that limits excessive input to the HF unit. This valuable protection circuit affords you worry-free operation of your speakers when you need them most. Combined with a highly responsive LF unit, CBR Series speakers reliably deliver clear, precise sound at any output level.
CBR Series speakers feature a very compact, durable, and lightweight plastic cabinet equipped with newly designed, ergonomic handles that greatly minimize system transport and setup. In addition, all CBR models feature a sleek, steel front grille that seamlessly blends in with installation aesthetics while protecting the vital inner speaker components from environmental hazards.
Product Specifications
| Speaker type | 2-way Speaker Bass-reflex Type |
| Frequency range (-10dB) | 50 Hz - 20 kHz |
| Horizontal Coverage | 90 degrees |
| Vertical Coverage | 60 degrees |
| Low Frequency Driver | 10" Cone 2" Voice Coil (Ferrite Magnet) |
| High Frequency Driver | 1" Voice Coil Compression Driver (Ferrite Magnet) |
| Crossover | 2.8 kHz |
| Peak Power | 700W |
| Nominal impedance | 8Ω |
| SPL Sensitivity (1W; 1m on axis) | 94dB SPL |
| SPK Peak Calculated | 123 dB |
| I/O connectors | 1/4" Phone x 1 speakON NL4MP x 1 |
| Cabinet material | Plastic |
| Finish | Black |
| Handle | Top x 1 |
| Flying and mounting hardware | Bottom x 2 & Rear x 1 (Fit for M8 x 15mm Eyebolts) |
| Pole socket | Φ35 mm Bottom x 1 |
| Width | 308mm (12.1") |
| Height | 493mm (19.4") |
| Depth | 289mm (11.4") |
| Weight | 9.4 kg (20.7 lbs) |
| Cover | Not Included |
