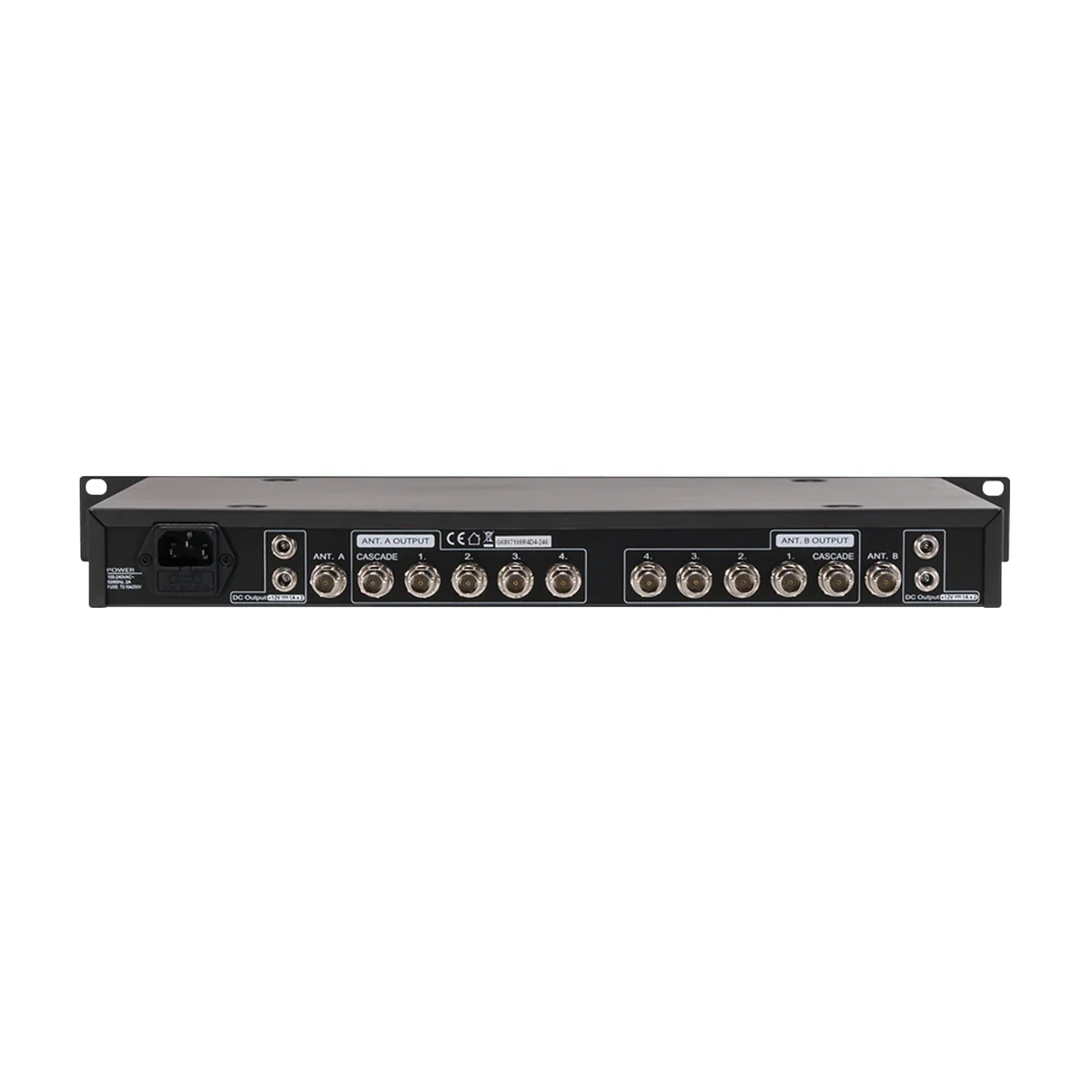

RF Venue DISTRO4 Antenna Distribution System With Cascade
The DISTRO4 includes all RF and DC power cables needed to connect a 4-channel wireless microphone system, as well as cascade to one additional DISTRO4. Available in individually or in the following bundles: DFINDISTRO4 Bundle includes the Diversity Fin antenna with padded protective cover and threaded mounting block (mounts to 1/4"-20, 3/8"-16 or 5/8"-27 threads), the DISTRO4 four-channel antenna distribution system, and two 25' RG8X coaxial cables. DFINBDISTRO4 Bundle (black) includes the Diversity Fin antenna with an L-bracket wall-mount kit, the DISTRO4 four-channel antenna distribution system, and two 25' RG8X coaxial cables. DFINWDISTRO4 Bundle (white) the Diversity Fin antenna with an L-bracket wall-mount kit, the DISTRO4 four-channel antenna distribution system, and two 25' RG8X coaxial cables.
Features
- Four amplified outputs compensate for signal strength lost in the splitting process
- Cascade output allows two or more units to be connected together to accommodate more than four receivers
- Internal switch for applying 12V DC power to antenna connections
- DC output jacks supply power to connected receivers
- Internal 2000 mA internal power supply (no wall wart)
- Includes one AC cable, four DC cables, and 10 BNC jumpers
- Full rack width (1 RU)
Specifications
- Operating frequency: 470 to 952 MHz
- RF output level (gain): 3 dB (+/-2 dB)
- Cascade output level: 0 dB ~ +2 dB
- Output connection isolation: >=25 dB
- Third order intercept point: 24 dBm
- Impedance: 50 ohms
- Power consumption: 60 W
- Input AC voltage: 100~240 V switching
- DC over coax (to external antennas): 12-14V DC
- Output DC voltage (to receiver jacks): +12V
- Dimensions: 480 mm (18.90") W x 250 mm (9.84") D x 45 mm (1.77") H
- Weight: 2.15 kg (4.7 lbs)
- Accessories included: AC cable; DC cable (x 4), BNC jumper (x 10)
