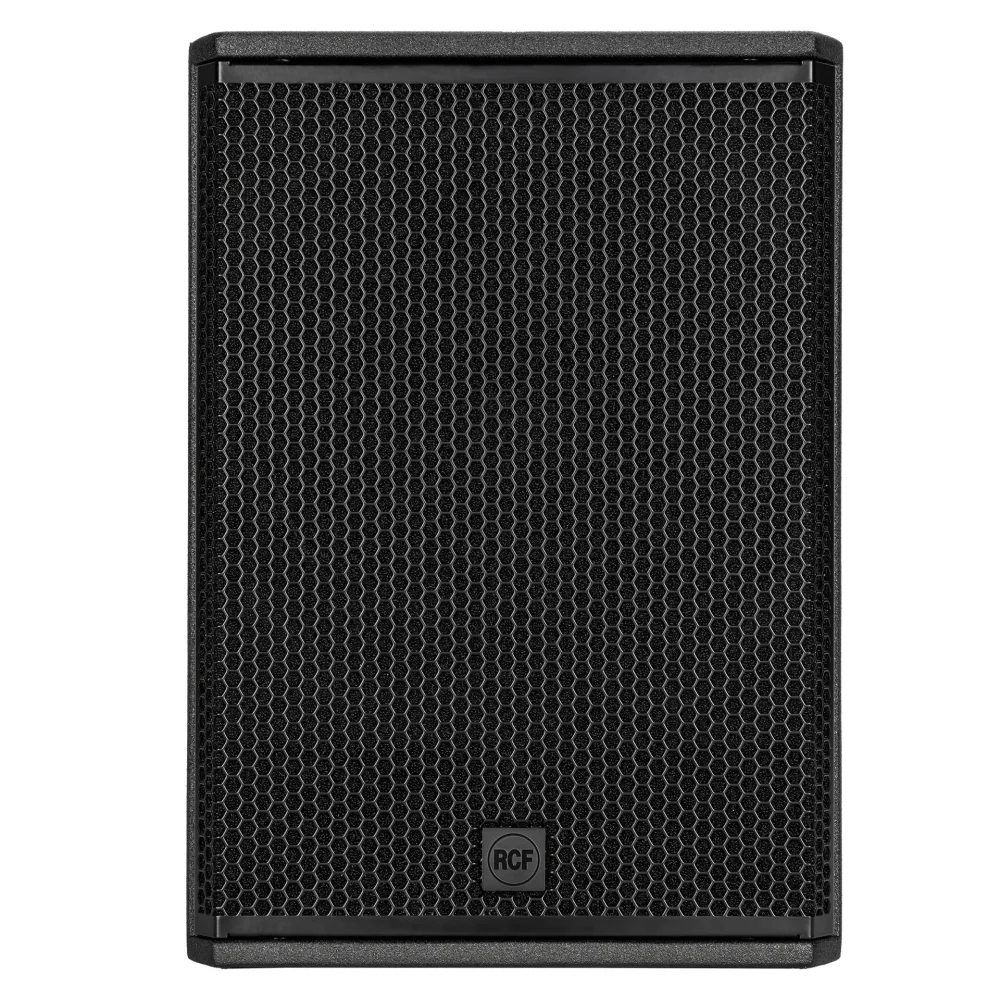

RCF SUB705ASMK3 Powered 15 Subwoofer
Designed to be the ideal complement to 10" or 12" loud speaker, it performs well in any application. Rear panel controls include volume, EQ, polarity and crossover frequency selection. The rugged all-wood housing with scratch-resistant polyurea coating makes it durable, easy to transport and safe to install. Versatility, sound quality and high output make the SUB 705-AS MK3 ideal for small to medium venues and portable applications.
Tour-Ready Workhorse
The subwoofer is suitable for a wide range of live sound applications. The robust all-plywood housing is lightweight for easy transport and stacking. All feature ergonomic handles with rubber grips for easy set-up and take-down. An M20 threaded rod mount on top allows the cabinet to support rod-mounted speakers. A durable polyurea coating, powder-coated metal grille and robust housing construction ensure it can withstand extended use and transportation. A separate housing for the amplifier ensures component efficiency and reliability. An acoustically transparent sound foam lining inside the grille protects against dust and moisture. With its frontal vented ports, allows the subwoofer to be used in recessed rooms.
Features
- 1400 Watt Class-D Amplifier
- 15” Woofer, bass reflex housing
- Stereo Crossover
- Switchable Crossover Frequencies
- Polarity-reverse switch
- Electronic equalization, soft limiter and protection
- Stereo XLR input, Stereo XLR signal output
- Bass Motion Control excursion management
Specifications
Acoustical Specifications Frequency Response: 40 Hz ÷ 120 Hz Max SPL @ 1m: 131 dB Transducers Woofer: 15'', 3.0'' v.c Input/Ouput Section Input signal: bal/unbal Input connectors: XLR Output connectors: XLR Input sensitivity: -2 dBu/+4 dBu Processor Section Hi-Pass Frequencies: 110 Hz Low-Pass Frequencies: 80 Hz Protections: Thermal, RMS Limiter: Soft Limiter Controls: Volume, EQ, Phase, Xover Power Section Total Power: 1400 W Peak, 700 W RMS Low frequencies: 1400 W Peak, 700 W RMS Cooling: Convection Connections: VDE Standard Compliance Safety agency: CE compliant Physical Specifications Handles: One each side Pole mount/Cap: Yes Color: Black Product Size Height: 598 mm / 23.54 inches Width: 420 mm / 16.54 inches Depth: 590 mm / 23.23 inches Weight: 30 kg / 66.14 lbs$688.39
Original: $1,966.82
-65%RCF SUB705ASMK3 Powered 15 Subwoofer—
$1,966.82
$688.39More Images
RCF SUB705ASMK3 Powered 15 Subwoofer
Designed to be the ideal complement to 10" or 12" loud speaker, it performs well in any application. Rear panel controls include volume, EQ, polarity and crossover frequency selection. The rugged all-wood housing with scratch-resistant polyurea coating makes it durable, easy to transport and safe to install. Versatility, sound quality and high output make the SUB 705-AS MK3 ideal for small to medium venues and portable applications.
Tour-Ready Workhorse
The subwoofer is suitable for a wide range of live sound applications. The robust all-plywood housing is lightweight for easy transport and stacking. All feature ergonomic handles with rubber grips for easy set-up and take-down. An M20 threaded rod mount on top allows the cabinet to support rod-mounted speakers. A durable polyurea coating, powder-coated metal grille and robust housing construction ensure it can withstand extended use and transportation. A separate housing for the amplifier ensures component efficiency and reliability. An acoustically transparent sound foam lining inside the grille protects against dust and moisture. With its frontal vented ports, allows the subwoofer to be used in recessed rooms.
Features
- 1400 Watt Class-D Amplifier
- 15” Woofer, bass reflex housing
- Stereo Crossover
- Switchable Crossover Frequencies
- Polarity-reverse switch
- Electronic equalization, soft limiter and protection
- Stereo XLR input, Stereo XLR signal output
- Bass Motion Control excursion management
Specifications
Acoustical Specifications Frequency Response: 40 Hz ÷ 120 Hz Max SPL @ 1m: 131 dB Transducers Woofer: 15'', 3.0'' v.c Input/Ouput Section Input signal: bal/unbal Input connectors: XLR Output connectors: XLR Input sensitivity: -2 dBu/+4 dBu Processor Section Hi-Pass Frequencies: 110 Hz Low-Pass Frequencies: 80 Hz Protections: Thermal, RMS Limiter: Soft Limiter Controls: Volume, EQ, Phase, Xover Power Section Total Power: 1400 W Peak, 700 W RMS Low frequencies: 1400 W Peak, 700 W RMS Cooling: Convection Connections: VDE Standard Compliance Safety agency: CE compliant Physical Specifications Handles: One each side Pole mount/Cap: Yes Color: Black Product Size Height: 598 mm / 23.54 inches Width: 420 mm / 16.54 inches Depth: 590 mm / 23.23 inches Weight: 30 kg / 66.14 lbsProduct Information
