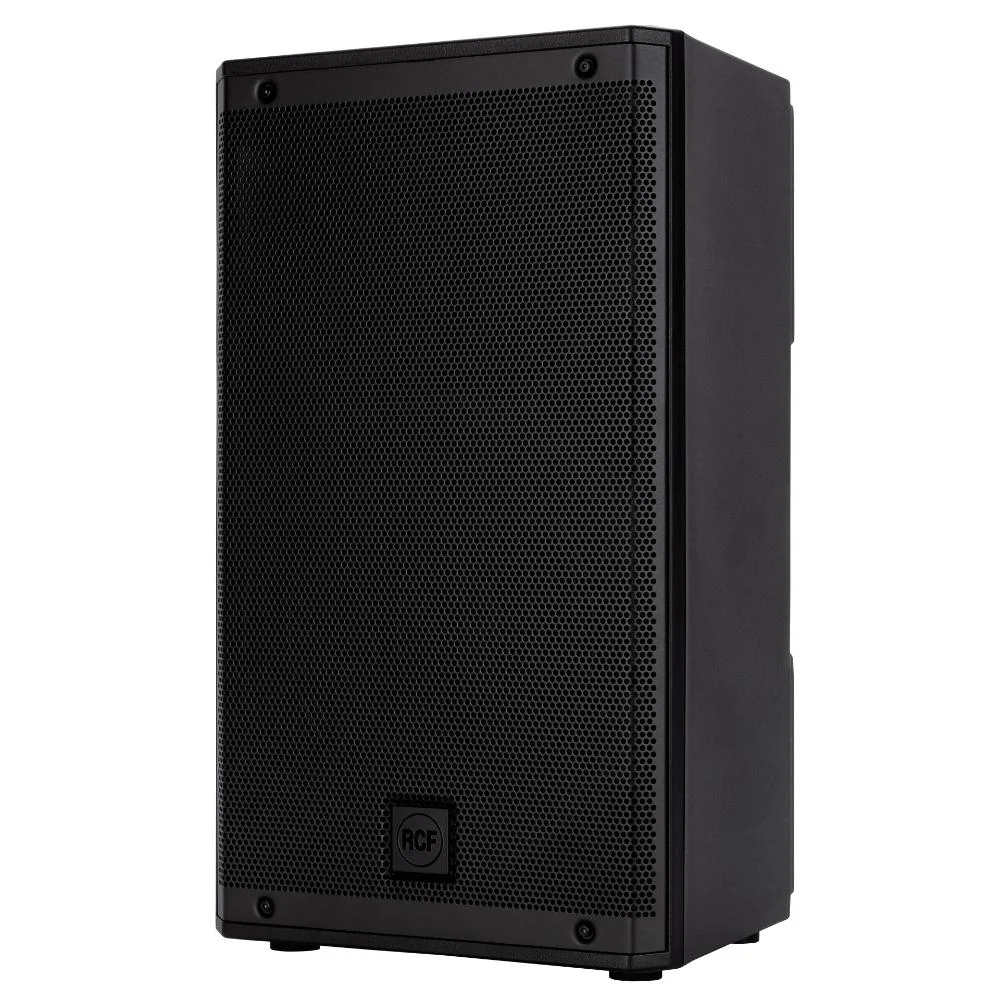

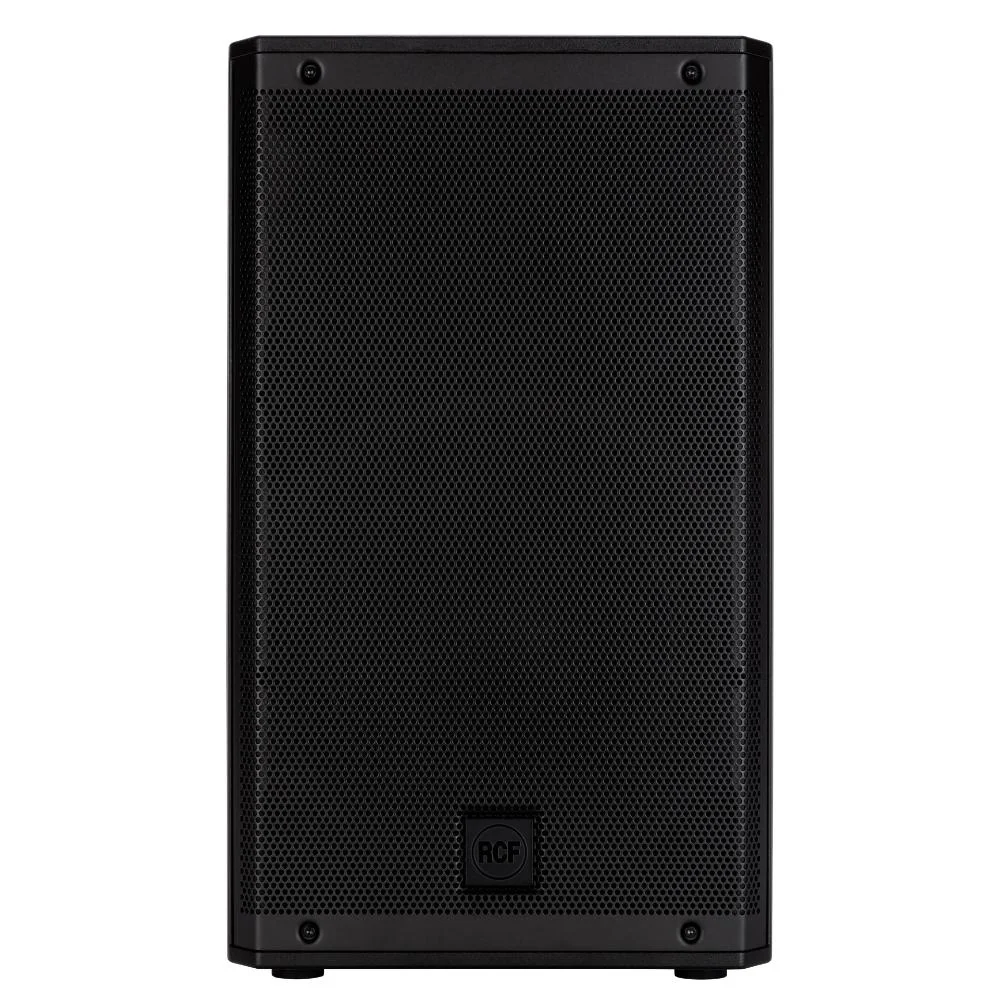

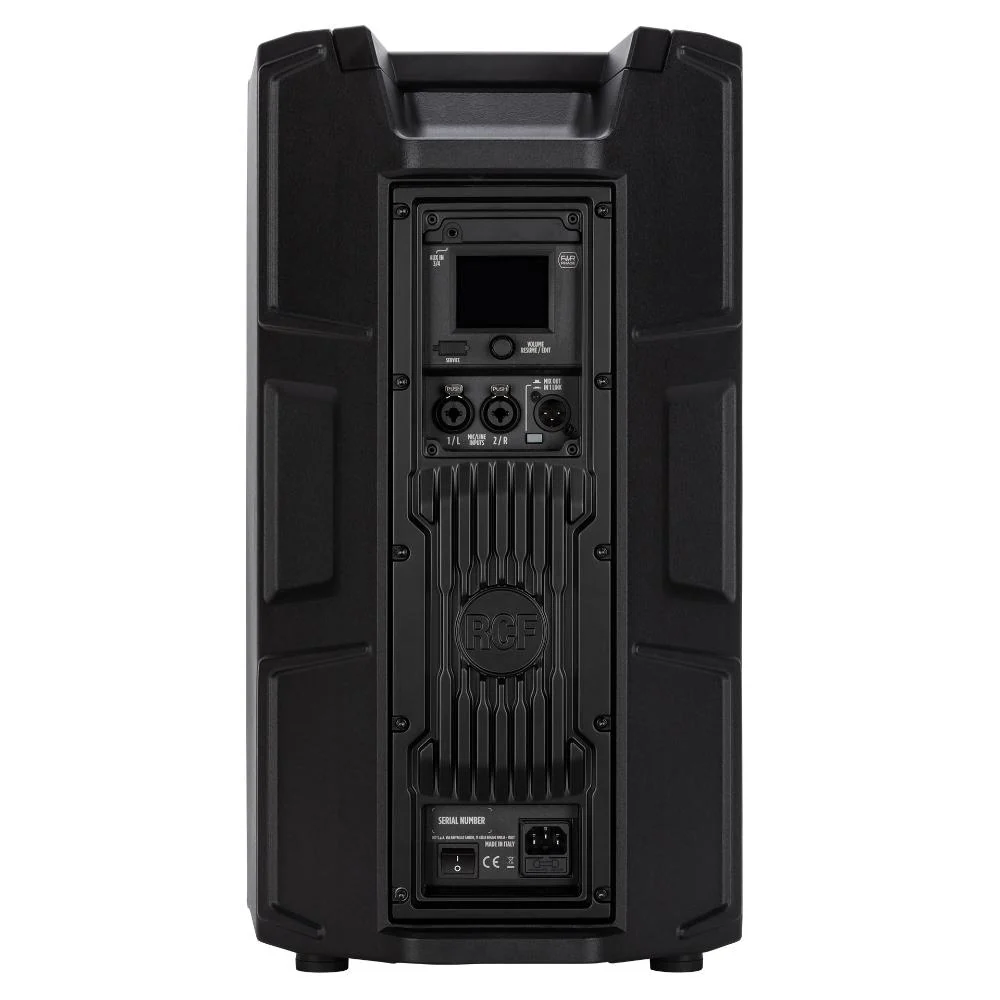

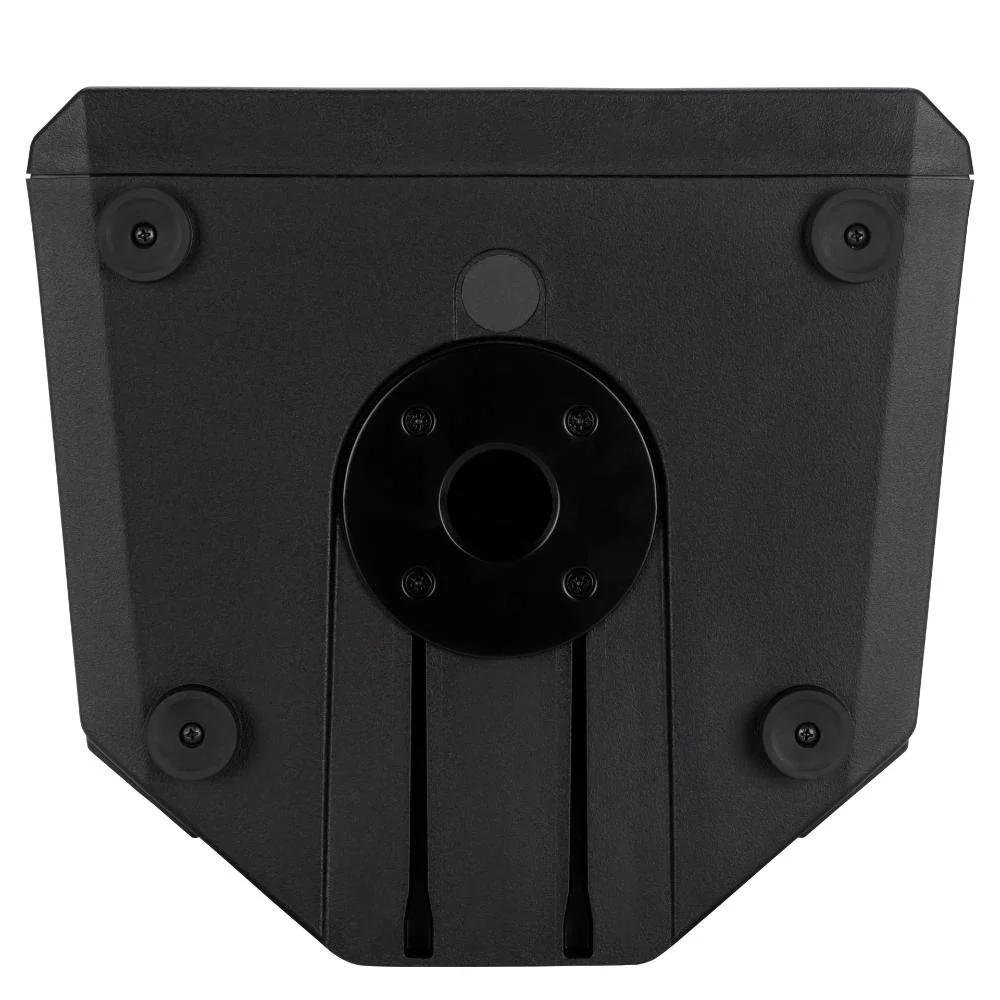

RCF ART 910-AX 2100W 10 Powered PA Speaker with DSP and Bluetooth

RCF's proprietary FiRPHASE and Bass Motion Control (BMC) DSP processing combined, perfectly tuned for each model, ensures your audience experiences absolute clarity and deep, powerful bass response. The ART 910-AX combines a powerful, amplified speaker with a digital audio processor for maximum flexibility. Several operating modes are possible, with the speaker alone or in combination with other speakers. Audio can be streamed to the speaker via Bluetooth® and a remote control is also available. All available functions and parameters can be accessed via the integrated color display via capacitive touchscreen and encoder, as well as via a special app for iOS and Android smartphones.

Features

• Built-in 6-channel Digital Mixer
• Advanced User Interface w/ touch panel and remote control
• 1.75" Compression Driver and 10" Woofer
• Up to 130 dB Sound Pressure Level
• 2100W Class-D Bi-Amplification
• Dual combo preamp with 48V Power and Mini-jack stereo line input
• Bluetooth® stereo audio input, with dual speaker pairing option
• True Resistive Waveguide, FiRPHASE, and Bass Motion Control

Specifications

Acoustical Specifications Frequency Response: 50 Hz ÷ 20000 Hz Max SPL @ 1m: 130 dB Horizontal coverage angle: 100° Vertical coverage angle: 60° Transducers Compression Driver: 1 x 1.0'', 1.75'' v.c Woofer: 1 x 10'', 2.5'' v.c Input/Output Section Input signal: bal/unbal Input connectors: Combo XLR/Jack Output connectors: XLR Processor Section Crossover Frequencies: 1600Hz Protections: Thermal, RMS Limiter: Soft Limiter Controls: Color touch panel, data entry/volume encoder, dedicated App for iOS and Android. Power Section Total Power: 2100 W Peak High frequencies: 700 W Peak Low frequencies: 1400 W Peak Cooling: Convection Connections: VDE Electronic Specifications Frequency Response: 20 Hz ÷ 20 Hz THD+N, 20dB gain, 0dBu out: 0.005% A-Weighted Processing Processing Channels: 6 Signal Processing: 24 Bit A/D-D/A conversion: 32 Bit @ 48.0 kHz Dynamic range: 110 Inputs Mic: 2 Remote Controlled Storable Gain: Yes Gain Range: 0 dB ÷ 42 dB Input Noise Level: -114 dBu A-Weighted Mic Inputs Impedance: 6 kohm Low Cut: 20 Hz ÷ 400 Hz Phantom Power +48V: Yes Mono Line: 2 Gain Selection: 0 dB ÷ 22 dB Line Input Impedance: 21 kohm A/D Dynamic range: 114 dB Stereo Line: 1 Gain Selection: 0 dB ÷ 10 dB Stereo Line Input Impedance (kOhm): 13 kohm Outputs Main MIX: 1 Output Specifications Main Out Impedance: 150 ohm Main Out Level: 22 dBu D/A Dynamic Range: 114 dB Compressors RCF Compressors: Compressors on MIC/LINE CH1 & CH2 Inputs EQ Input Channels EQ: 2 Shelving 1 Description: 3 Band EQ: High and Low band shelving, MID band peak on IN 5 Band EQ: 4 Full Parametric, 1 High Shelving and HPF 24 dB/Oct on amplifier and MAIN output. Internal Effects Send Effects: 1 Mastering Processors Main OUT type: MIX OUT, CROSSOVER OUT with RCF SUBWOOFERS presets, STEREO OUTPUT, CH1 LINK OUT. Standard Compliance Safety agency: CE compliant Physical Specifications Hardware: 1 x M10 Top and Bottom Handles: 1 Top Pole mount/Cap: Yes Color: Black Size Height: 572 mm / 22.52 inches Width: 330 mm / 12.99 inches Depth: 310 mm / 12.2 inches Weight: 15.8 kg / 34.83 lbs
