Jim Dunlop Crybaby Junior Wah Guitar Effects Pedal

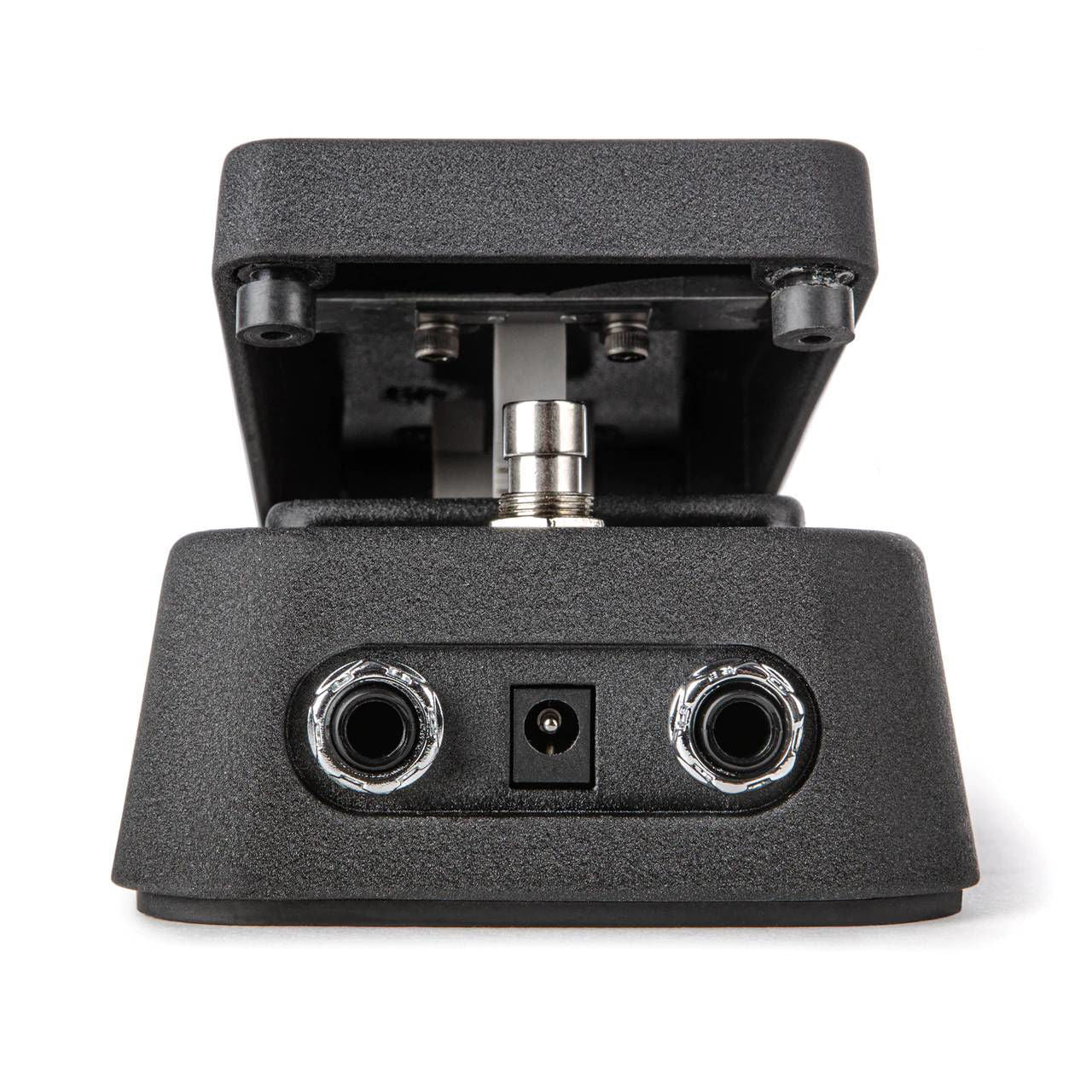

Front mounted input, output and power jacks allow for a tighter configuration of pedals, freeing up space on the sides that would normally be taken up by cable ends.
On the side of the pedal is a convenient and accessible three-position switch that allows you to choose one of three of the most popular Crybaby voices.
The H setting gives you the aggressive modern sound of the CB95, M provides the midrange growl of vintage wah pedals and L provides a sound that's dark and rich. True hardwire bypass. Powered by 9 volt battery or AC adaptor (ECB003 - not included).
Specifications
IMPEDANCE
- Input: -8.0 dBV
- Output: +10 dBV
WAH RANGE SELECTOR
- Range Selector Switch Position: (H towards Heel, L towards Toe)
- H: 380 Hz to 2100 Hz
- M: 330 Hz to 1800 Hz
- L: 270 Hz to 1500 Hz
MAXIMUM LEVEL
- Input: -8.0 dBV
- Output: +10 dBV
MAXIMUM GAIN
- Heel Down: +19.5 dB
- Toe Down: +19.0 dB
NOISE FLOOR*
- Heel Down: -98 dBV
- Toe Down: -89 dBV
Bypass: True Hardwire
Current Draw: 3 mA
Power Supply: 9 volts DC
Watch: CRY BABY® JUNIOR
