BOSS WL-60 Wireless Guitar System

The WL-60 system is a great fit for serious stage performers, bridging plug-and-play simplicity with fast user-guided control. The compact receiver is tailor-made for pedalboards, and features a large visual display and direct-access buttons to quickly scan and select the best wireless channel. Rounding out the system is a rugged bodypack transmitter, which is compatible with nearly any instrument and runs for up to 25 hours on regular alkaline batteries.

---

Features

• Premium audio performance with lightning-fast BOSS wireless technology
• Automatic 14-channel scanning makes set up quick and uncomplicated
• Large LCD shows channel status, wireless strength, battery life, and more
• Stompbox-size receiver fits easily on your pedalboard
• Bodypack transmitter works with nearly any instrument and runs for up to 25 hours on two AA alkaline batteries
• Transmission range: 20 meters/65 feet line of sight (may vary due to local conditions)
• Short high-quality cable included for connecting the transmitter to a guitar or bass
• Receiver powered by AC adaptor or two AA alkaline batteries
• Convenient DC output on receiver for powering other pedals (when using AC adaptor)
• Instrument input for using a standard cable without removing the receiver from a pedalboard
• Included WL-60T Transmitter also available separately for backup and outfitting additional stage instruments

---

Specifications

Wireless Format
BOSS proprietary digital audio format

Wireless carrier frequency
2.4 GHz

Compatible Channels
14 (May vary due to local conditions)

Transmission Range
65 feet line-of-sight (May vary due to local conditions)

Latency
2.3 ms

Dynamic Range
110 dB or greater

Frequency Response
20 Hz--20 kHz

Nominal Input Level
-10 dBu

Input Impedance
1 M ohm

Nominal Output Level
-10 dBu

Output Impedance
1 k ohm

Recommended Load Impedance
10 k ohms or greater

Controls
CH button
SCAN button
ENTER button
CABLE TONE button

Indicators
Graphic LCD 64 x 32 dots

Connectors
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type

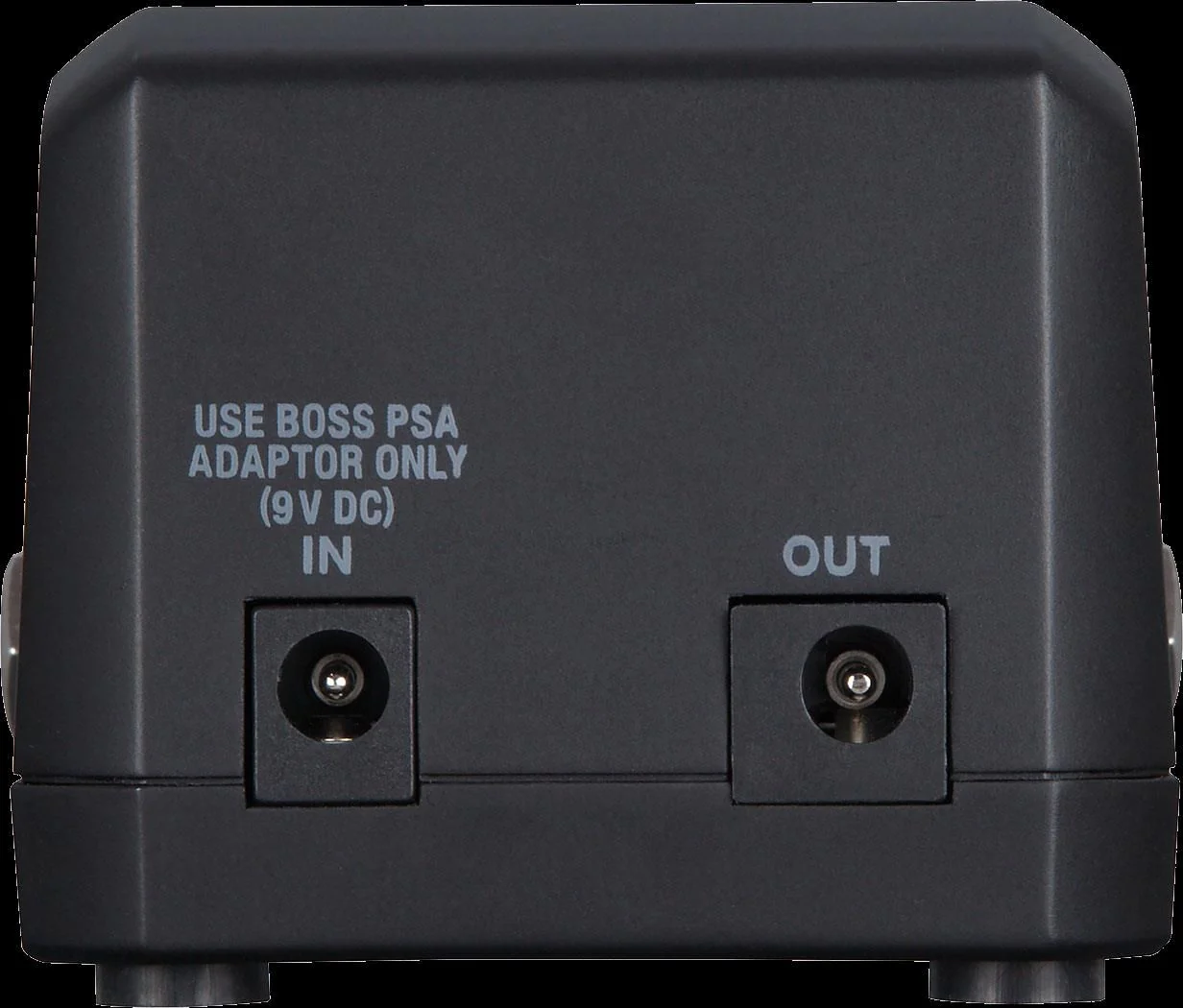

IN jack
OUT jack

Power Supply
Alkaline battery (AA, LR6) x 2
AC adaptor (sold separately)

Current Draw
70 mA

Expected battery life under continuous use
Alkaline battery (AA, LR6): Approximately 10 hours
* These figures will vary depending on the actual conditions of use.

Accessories
Owner's Manual
Leaflet USING THE UNIT SAFELY
Transmitter
Guitar cable
Rubber foot x 4
Alkaline battery (AA, LR6) x 2

Options (sold separately)
AC adaptor: PSA-S series
Parallel DC cord: PCS-20A (DC Plug x8)

Width
70 mm
2-13/16 inches

Depth
120 mm
4-3/4 inches

Height(excluding rubber foot)
54 mm
2-1/8 inches

Height(including rubber foot)
57 mm
2-1/4 inches

Weight (excluding battery)
180 g
7 oz

Weight (including battery)
220 g
8 oz
* 0 dBu = 0.775 Vrms

---
