ASM Hydrasynth Explorer Digital Wave Morphing Keyboard Synthesizer

ASM Hydrasynth Explorer Digital Wave Morphing Keyboard Synthesizer

The greatest attention has been put to its user interface, making sound creation a breeze. This is the ultimate companion for a portable setup, where a smaller footprint in needed.

Utilizing an advanced wavetable synthesis engine, 3 Oscillators, dual Wave Mutators and 2 filters that can be configured in series or parallel, the tone generating capabilities are unmatched.​

As for the performance capabilities, The HYDRASYNTH EXPLORER has our proprietary 37-note mid-sized Polytouch™ keybed that offers polyphonic aftertouch over each note, giving you the type of expressive control found only in certain vintage synths.

Features

  • 8-voice polyphonic digital wave morphing synthesizer
  • POLYTOUCH™ Polyphonic Aftertouch
  • Note on/off velocity keyboard with 37 mid-sized keys
  • Battery-powered operation using 8xAA batteries (not included)
  • MPE (MIDI Polyphonic Expression) compatible
  • Microtuning support via MIDI Tuning Standard files
  • 3 Oscillators per voice with 4 Mutators total
  • 1 Multimode filter and 1 variable LP-BP/Notch-HP filter per voice
  • 640 program locations with Category search
  • CV/Gate interconnectivity

Specifications

Metal Chassis
  • Steel top and bottom
  • Aluminum side panels

PolyTouch© Keybed

  • Semi-weighted
  • Polyphonic aftertouch
  • Velocity

4 octave (67 cm, 26.4”) Ribbon controller

  • Pitch bend mode
  • CC control mode – modulation source
  • Theremin mode - triggers envelopes and plays pitch
    • Continuous pitch or choose from multiple scales
5 banks of 128 patch memories
CV gate input and oututs
  • Support multiple CV/GATE standards
    • CV
      • 1v per octave +/-5V
      • 1V per octave 0-10V
      • Hz to Volts +/-5V
      • Hz to Volts 0-10V
      • 1.2V per octave
    • Gates
      • V-trig, S-trig
      • 3V, 5V, 10V
    • Mod In/Out range
      • +/5V, 0-10V, 0-5V, 0-1V
  • Clock in and out
    • 1PPS, 2PPQ, 24PPQ, 48 PPQ
    • Clock Voltage - 3v, 5V, 10V
MIDI IN/OUT/THRU
  • Voice overflow mode for expanding voices with another Hydrasynth
Expression pedal input
Sustain pedal input
  • Polarity sensing input​
DC input jack

USB port
  • Supports USB MIDI In/Out
Dimensions
80 x 35 x 10.3 cm
(31.5 x 13.78 x 4.05 inches)

Weight
10kg (22.05 lbs)

Watch: Hydrasynth Explorer Introduction

$686.13
ASM Hydrasynth Explorer Digital Wave Morphing Keyboard Synthesizer—
$686.13

More Images

ASM Hydrasynth Explorer Digital Wave Morphing Keyboard Synthesizer - Image 2

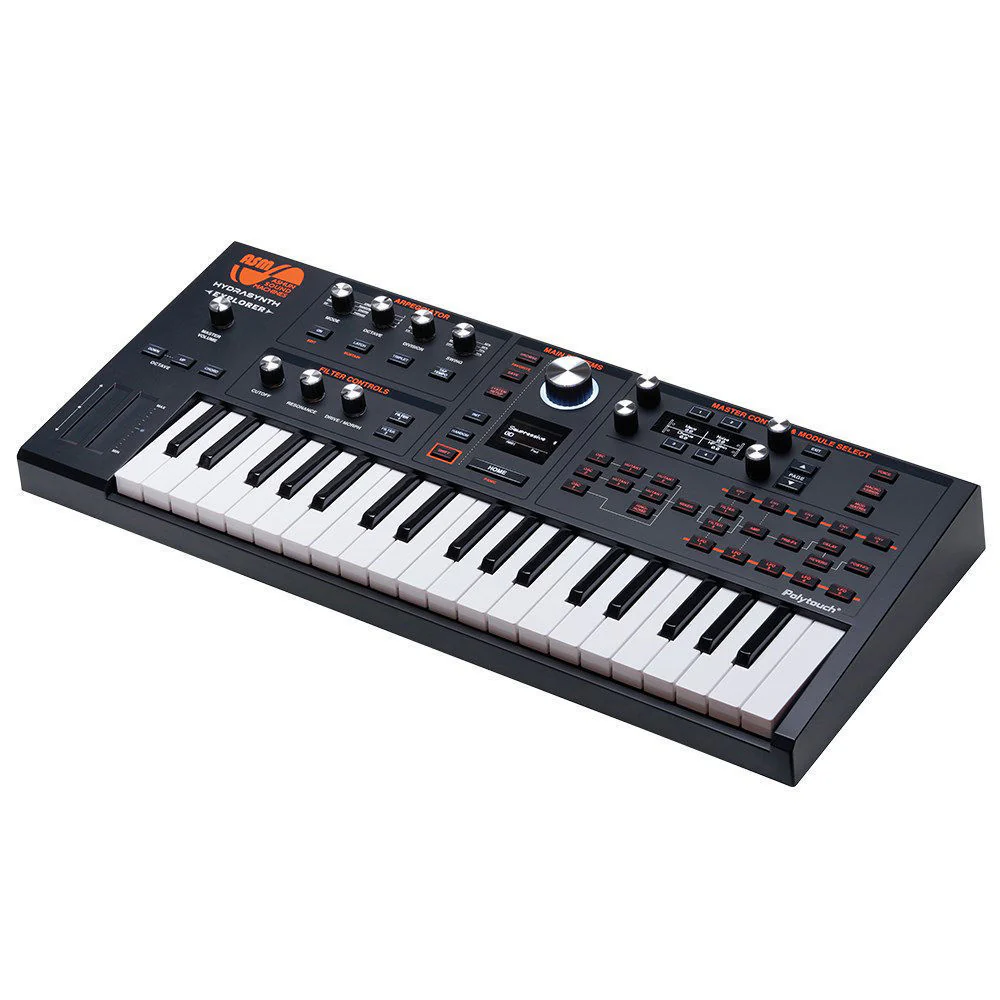

ASM Hydrasynth Explorer Digital Wave Morphing Keyboard Synthesizer - Image 3

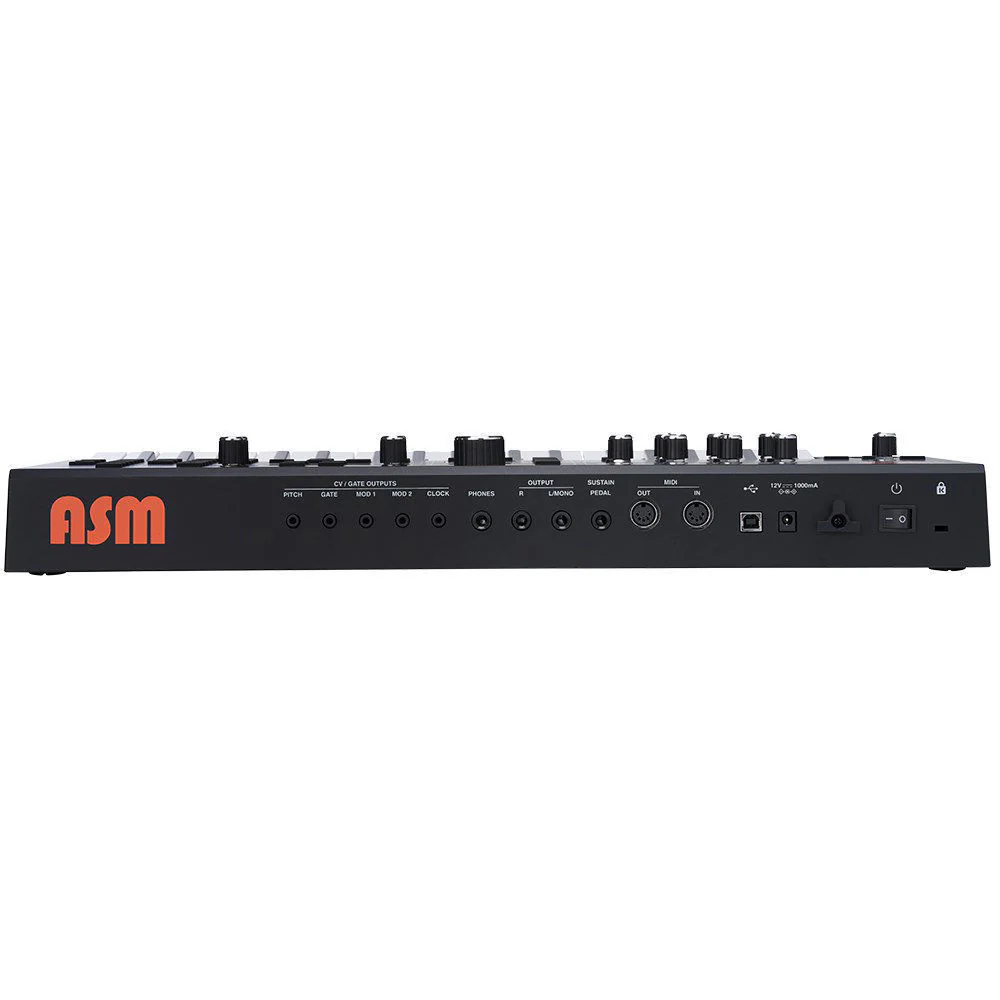

ASM Hydrasynth Explorer Digital Wave Morphing Keyboard Synthesizer - Image 4
