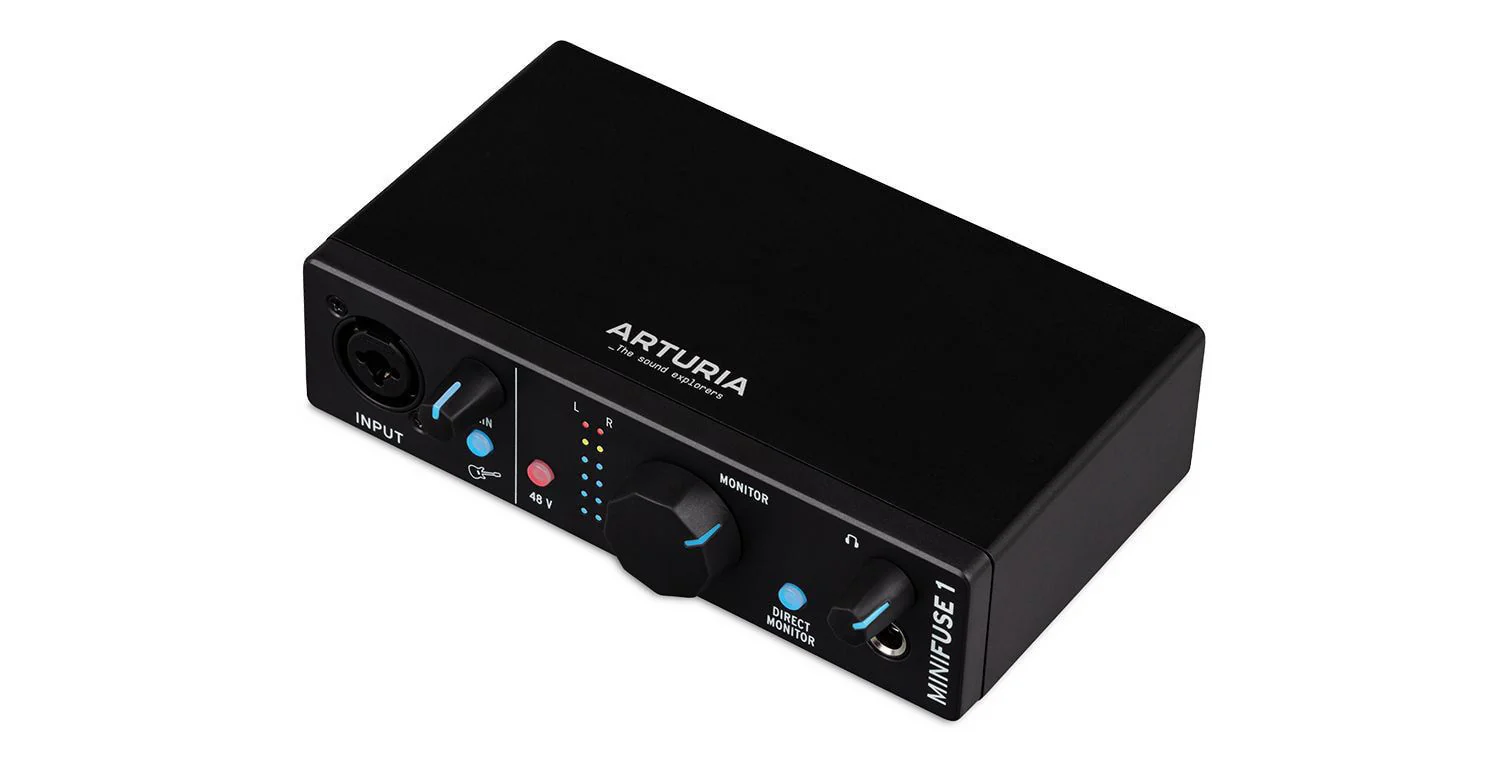

Arturia Minifuse 1 1in 2out USB 2 Interface Black

"

Make music and record audio wherever inspiration strikes, from your home studio to the great outdoors, with the ultimate portable recording interface.

Whether you’re a solo guitarist, vocalist, budding content creator, or anything in between, enjoy the sharpest sound quality, the smartest features, and the best software included as standard. MiniFuse 1 is designed to make your sound happen.

---

Features

• Included Arturia instruments - 500 vintage & modern keyboard presets with Analog Lab Intro
• Arturia FX:
  • Rev PLATE-140 reverb
  • Pre 1973 vintage preamp
  • Delay TAPE-201 echo
  • Chorus JUN-6 analog chorus
• Ableton Live Lite - compose, record, produce anything
• Tutorials - Learn recording and music production with MiniFuse, starting with the basics
• Exclusive content - Tips, tricks, and advice from industry experts
• Dedicated online portal - Access everything you need online in one place
• Subscriptions - Complimentary introductions to world-class audio & mixing services

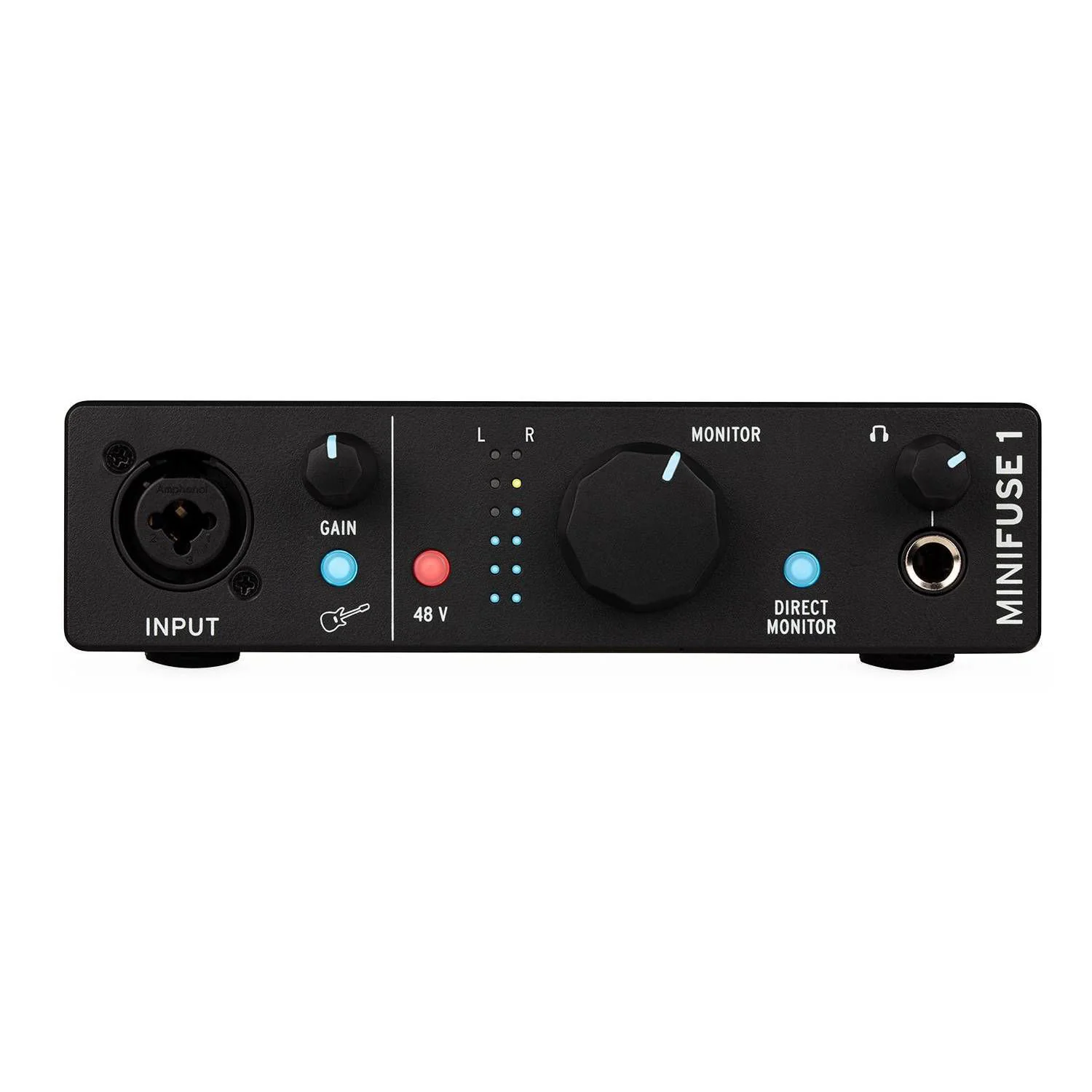

• 1 x combo Mic/Inst/Line XLR Input with 48V phantom power

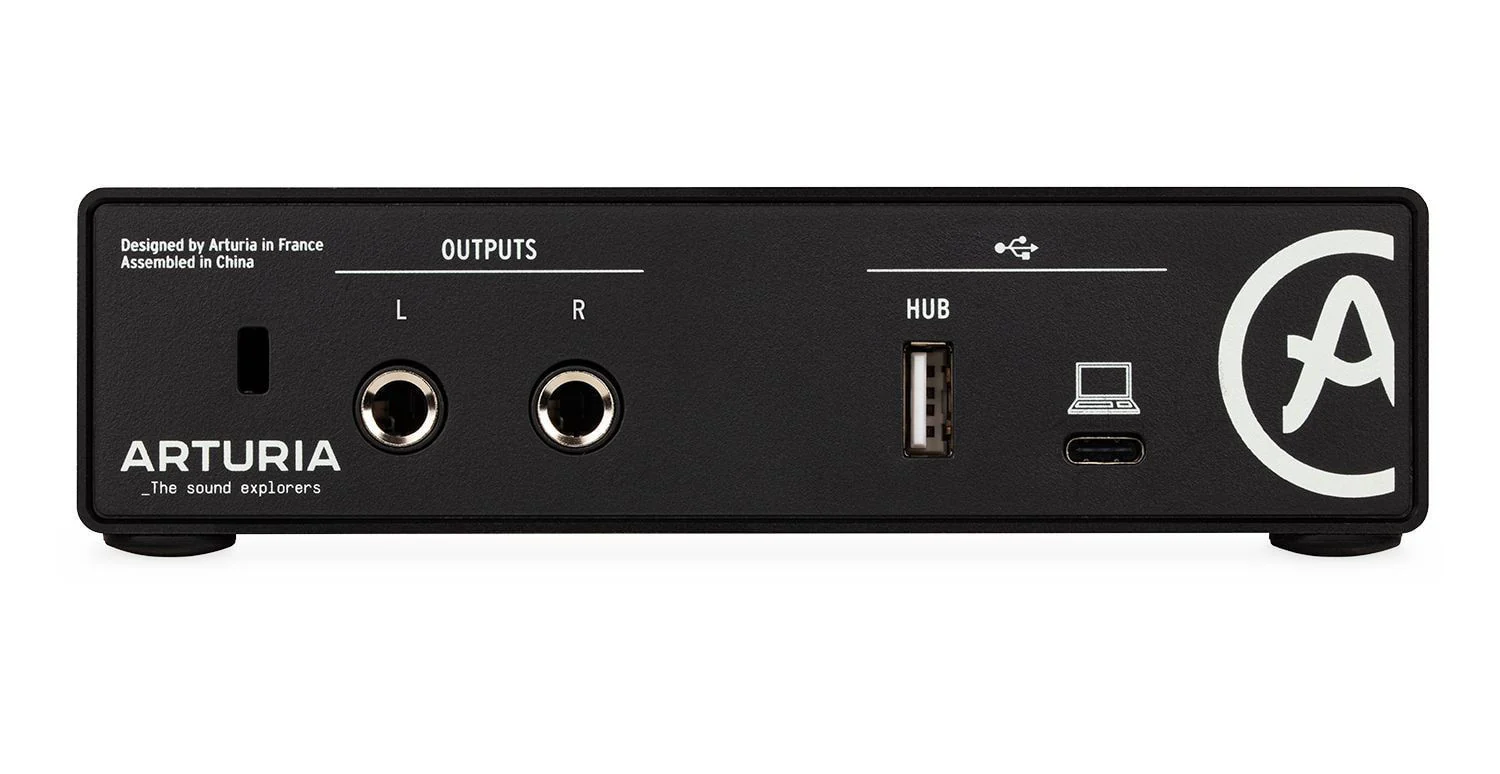

• 2 x 1/4"" TRS balanced line outputs with volume control
• 1 x stereo headphone output with volume control
• Direct Monitor switch
• 1 x USB2 type A hub (250mA max.)
• 1 x stereo virtual loopback channel
• USB-C interface compatible with PC and Mac, fully USB 2.0 compatible
• Bus-powered
• Black colour

---

Specifications

Line Inputs

• Input impedance: 16kΩ
• Maximum input level: +22dBu
• Gain range: 56dB
• Frequency response 20Hz to 20kHz: +/-0.05dB (min gain)
• Dynamic range: 110dB typical (A-weighted)
• THD+N @ 1kHz: -100dB typical (un-weighted)

Instrument Input

• Input impedance: 1MΩ on Tip
• Maximum input level: +11.5dBu
• Gain range: 56dB
• Frequency response 20Hz to 20kHz: +/-0.06dB (min gain)
• Dynamic range: 110dB typical (A-weighted)
• THD+N @ 1kHz: -91dB typical (un-weighted)

Microphone Preamps

• Input impedance: 2.5kΩ
• Maximum input level: +9dBu
• Gain range: 56dB
• Equivalent Input Noise (EIN): -129dB typical (A-weighted)
• Frequency response 20Hz to 20kHz: +/-0.06dB (min gain)
• Dynamic range: 110dB typical (A-weighted)
• THD+N @ 1kHz: -100dB typical (un-weighted)

Speakers

• Output impedance: 94Ω
• Maximum output level: +12dBu
• Frequency response 20-20kHz: +/-0.09dB
• Dynamic range: 107.5dB typical (A-weighted)
• THD+N @ 1kHz: -101dB typical (un-weighted)

Phones

• Output impedance: 10Ω
• Maximum output level: +11.4dBu
• Frequency response 20-20kHz: +/-0.09dB
• Dynamic range: 104dB typical (A-weighted)
• Power @ 33ohm: 137mW

Supported Sample rates

• 44.1kHz, 48kHz, 88.2 kHz, 96kHz, 176.4kHz, 192 kHz

---
